SDO HMI 2014-04-11 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 34.79 | 0.00 | 18.36 | -20.85 | 321.37 | 12.14 | 215.59 | 0.3425 | -317.3 | -328.9 | |
|
previous
or next observation for the same group /

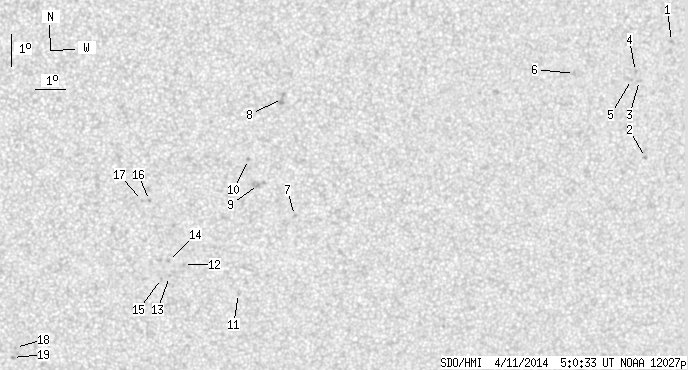

back to the solar disc SDO HMI 2014-04-11 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 0.87 | -16.50 | 332.42 | 23.20 | 243.10 | 0.4253 | 791.0 | 630.8 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -20.09 | 332.03 | 22.80 | 235.25 | 0.4448 | 824.0 | 624.0 | |
| 0.00 | 1.77 | 0.00 | 0.96 | -17.73 | 331.49 | 22.26 | 239.56 | 0.4204 | 625.0 | 574.8 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -17.46 | 331.32 | 22.09 | 239.98 | 0.4162 | 743.0 | 617.4 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -17.71 | 331.22 | 21.99 | 239.33 | 0.4165 | 636.0 | 445.2 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -17.59 | 329.28 | 20.05 | 237.48 | 0.3892 | 872.0 | 681.3 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -22.22 | 320.43 | 11.20 | 212.47 | 0.3364 | -719.0 | -593.9 | |
| 0.00 | 5.65 | 0.00 | 2.92 | -18.60 | 319.78 | 10.56 | 218.13 | 0.2825 | -697.0 | -672.5 | |
| 0.00 | 7.15 | 0.00 | 3.73 | -21.27 | 319.18 | 9.95 | 211.15 | 0.3126 | -892.0 | -663.8 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -20.50 | 318.80 | 9.57 | 211.60 | 0.2986 | -873.0 | -724.6 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -24.71 | 318.76 | 9.53 | 204.94 | 0.3583 | -743.0 | -560.1 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -23.81 | 316.87 | 7.64 | 201.53 | 0.3328 | -746.0 | -651.8 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -24.20 | 316.42 | 7.20 | 199.97 | 0.3361 | -736.0 | -645.6 | |
| 0.00 | 1.59 | 0.00 | 0.83 | -23.69 | 316.36 | 7.14 | 200.39 | 0.3280 | -1042.0 | -752.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -24.26 | 316.16 | 6.94 | 199.23 | 0.3357 | -757.0 | -626.1 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -21.82 | 315.65 | 6.42 | 200.71 | 0.2949 | -913.0 | -751.0 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -21.82 | 315.42 | 6.19 | 200.04 | 0.2936 | -694.0 | -479.8 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -26.50 | 311.37 | 2.14 | 185.44 | 0.3548 | -838.0 | -706.2 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -26.82 | 311.28 | 2.05 | 185.11 | 0.3599 | -870.0 | -682.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
