SDO HMI 2014-04-11 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.77 | 414.73 | 51.70 | 264.36 | 11.59 | 273.74 | -34.94 | 63.26 | 0.6297 | -481.0 | -239.1 | |
|
previous
or next observation for the same group /

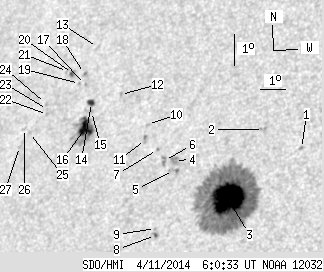

back to the solar disc SDO HMI 2014-04-11 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 0.97 | 12.39 | 277.44 | -31.24 | 59.42 | 0.5906 | -814.0 | -642.2 | |
| 0.00 | 3.53 | 0.00 | 2.21 | 13.08 | 275.96 | -32.72 | 59.56 | 0.6129 | 760.0 | 580.0 | |
| 61.44 | 321.41 | 38.41 | 201.07 | 11.00 | 274.93 | -33.75 | 63.35 | 0.6125 | -1338.7 | -364.5 | |
| 0.00 | 5.74 | 0.00 | 3.71 | 12.29 | 272.75 | -35.93 | 62.91 | 0.6462 | -656.0 | -572.9 | |
| 0.00 | 3.97 | 0.00 | 2.57 | 11.98 | 272.76 | -35.91 | 63.35 | 0.6443 | -702.0 | -579.0 | |
| 0.00 | 4.41 | 0.00 | 2.87 | 12.32 | 272.37 | -36.31 | 63.12 | 0.6509 | -622.0 | -467.7 | |
| 0.00 | 1.06 | 0.00 | 0.69 | 12.69 | 272.04 | -36.64 | 62.82 | 0.6568 | -431.0 | -408.6 | |
| 0.62 | 1.94 | 0.40 | 1.25 | 9.97 | 272.36 | -36.31 | 66.48 | 0.6384 | -775.6 | -634.9 | |
| 0.00 | 1.15 | 0.00 | 0.74 | 10.19 | 272.34 | -36.34 | 66.18 | 0.6399 | -522.0 | -423.5 | |
| 0.00 | 1.59 | 0.00 | 1.05 | 13.51 | 271.51 | -37.17 | 62.02 | 0.6676 | 806.0 | 673.3 | |
| 0.00 | 3.18 | 0.00 | 2.10 | 13.04 | 271.52 | -37.16 | 62.66 | 0.6648 | 688.0 | 607.5 | |
| 0.00 | 1.68 | 0.00 | 1.14 | 14.55 | 270.25 | -38.43 | 61.41 | 0.6876 | 719.0 | 630.2 | |
| 0.00 | 1.50 | 0.00 | 1.05 | 16.15 | 268.96 | -39.72 | 60.12 | 0.7102 | 408.0 | 363.0 | |
| 2.91 | 4.59 | 2.01 | 3.17 | 14.37 | 269.12 | -39.56 | 62.31 | 0.6991 | 736.3 | 528.9 | |
| 0.00 | 1.32 | 0.00 | 0.91 | 14.08 | 269.18 | -39.50 | 62.66 | 0.6969 | 403.0 | 403.1 | |
| 14.65 | 41.58 | 10.07 | 28.60 | 13.58 | 269.04 | -39.64 | 63.39 | 0.6959 | 899.1 | 293.1 | |
| 0.00 | 1.24 | 0.00 | 0.86 | 14.97 | 268.75 | -39.93 | 61.75 | 0.7063 | 742.0 | 621.6 | |
| 0.00 | 0.53 | 0.00 | 0.37 | 15.33 | 268.62 | -40.06 | 61.36 | 0.7095 | 709.0 | 642.2 | |
| 0.00 | 0.79 | 0.00 | 0.56 | 15.02 | 268.49 | -40.19 | 61.83 | 0.7093 | 601.0 | 475.4 | |
| 1.15 | 2.91 | 0.81 | 2.06 | 15.37 | 268.12 | -40.56 | 61.60 | 0.7151 | 722.8 | 570.7 | |
| 0.00 | 2.30 | 0.00 | 1.63 | 15.45 | 267.90 | -40.78 | 61.62 | 0.7179 | 358.0 | 368.0 | |
| 0.00 | 1.15 | 0.00 | 0.81 | 14.11 | 267.38 | -41.30 | 63.62 | 0.7168 | 278.0 | 402.8 | |
| 0.00 | 0.26 | 0.00 | 0.19 | 14.28 | 267.34 | -41.34 | 63.43 | 0.7180 | 544.0 | 630.3 | |
| 0.00 | 0.71 | 0.00 | 0.50 | 14.48 | 267.21 | -41.47 | 63.24 | 0.7204 | 595.0 | 513.8 | |
| 0.00 | 1.68 | 0.00 | 1.20 | 13.59 | 266.75 | -41.93 | 64.62 | 0.7212 | 567.0 | 472.1 | |
| 0.00 | 1.77 | 0.00 | 1.26 | 13.73 | 266.51 | -42.17 | 64.56 | 0.7245 | 407.0 | 323.7 | |
| 0.00 | 1.15 | 0.00 | 0.82 | 13.17 | 266.42 | -42.26 | 65.33 | 0.7229 | 618.0 | 415.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
