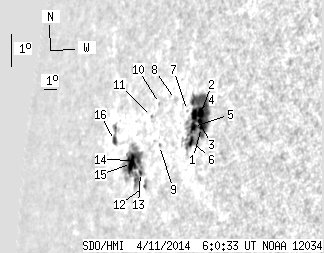

SDO HMI 2014-04-11 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.06 | 157.56 | 46.56 | 207.09 | 4.37 | 241.48 | -67.20 | 82.82 | 0.9272 | -28.5 | -49.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-11 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.59 | 87.30 | 1.87 | 104.26 | 4.52 | 244.32 | -64.36 | 82.22 | 0.9088 | -872.4 | -342.8 | |
| 3.27 | -1.00 | 3.87 | -1.00 | 4.96 | 244.18 | -64.50 | 81.77 | 0.9103 | -880.1 | 999999 | |
| 1.50 | -1.00 | 1.78 | -1.00 | 4.72 | 244.15 | -64.53 | 82.04 | 0.9103 | -953.6 | 999999 | |
| 5.21 | -1.00 | 6.28 | -1.00 | 4.97 | 243.75 | -64.93 | 81.83 | 0.9134 | -392.7 | 999999 | |
| 3.53 | -1.00 | 4.25 | -1.00 | 4.60 | 243.74 | -64.94 | 82.23 | 0.9131 | -477.0 | 999999 | |
| 3.71 | -1.00 | 4.46 | -1.00 | 4.15 | 243.67 | -65.01 | 82.73 | 0.9131 | -431.0 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.98 | 5.14 | 243.20 | -65.48 | 81.73 | 0.9173 | -21.0 | 31.6 | |
| 0.00 | 1.06 | 0.00 | 1.36 | 5.57 | 242.21 | -66.47 | 81.43 | 0.9244 | 200.0 | 157.5 | |
| 0.00 | 1.15 | 0.00 | 1.52 | 4.26 | 241.23 | -67.45 | 82.99 | 0.9295 | 109.0 | 139.5 | |
| 0.00 | 0.88 | 0.00 | 1.20 | 5.57 | 240.95 | -67.72 | 81.64 | 0.9325 | -133.0 | -99.8 | |
| 0.00 | 0.79 | 0.00 | 1.10 | 5.23 | 240.38 | -68.30 | 82.09 | 0.9357 | 472.0 | 451.2 | |
| 0.53 | 3.27 | 0.73 | 4.50 | 3.12 | 240.19 | -68.49 | 84.36 | 0.9350 | 425.5 | 374.6 | |
| 1.15 | 54.20 | 1.62 | 79.01 | 3.58 | 239.79 | -68.89 | 83.92 | 0.9379 | 671.5 | 272.2 | |
| 1.68 | -13.00 | 2.40 | -13.00 | 3.97 | 239.55 | -69.13 | 83.55 | 0.9396 | 755.6 | 999999 | |
| 10.59 | -13.00 | 15.59 | -13.00 | 3.94 | 238.94 | -69.73 | 83.67 | 0.9431 | 442.5 | 999999 | |
| 2.30 | 8.12 | 3.71 | 13.16 | 4.81 | 237.19 | -71.49 | 83.00 | 0.9534 | 254.8 | 173.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
