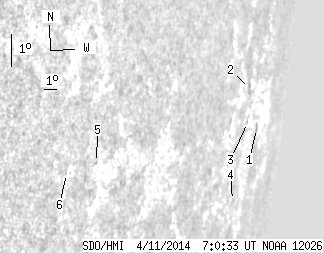

SDO HMI 2014-04-11 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.56 | 0.00 | 20.94 | -8.26 | 27.08 | 78.94 | 262.74 | 0.9784 | -10.3 | 181.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-11 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.47 | 0.00 | 7.20 | -8.41 | 29.06 | 80.93 | 262.45 | 0.9862 | 147.0 | 88.6 | |
| 0.00 | 3.80 | 0.00 | 9.26 | -7.39 | 27.02 | 78.88 | 263.65 | 0.9800 | 332.0 | 337.4 | |
| 0.00 | 0.79 | 0.00 | 1.98 | -8.39 | 27.41 | 79.28 | 262.60 | 0.9811 | 315.0 | 268.6 | |
| 0.00 | 0.62 | 0.00 | 1.49 | -10.81 | 27.09 | 78.95 | 260.16 | 0.9794 | -99.0 | -103.1 | |
| 0.00 | 0.62 | 0.00 | 0.72 | -10.97 | 13.39 | 65.26 | 260.64 | 0.9054 | -392.0 | -365.1 | |
| 0.00 | 0.26 | 0.00 | 0.29 | -11.48 | 11.46 | 63.33 | 260.11 | 0.8908 | -365.0 | -299.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
