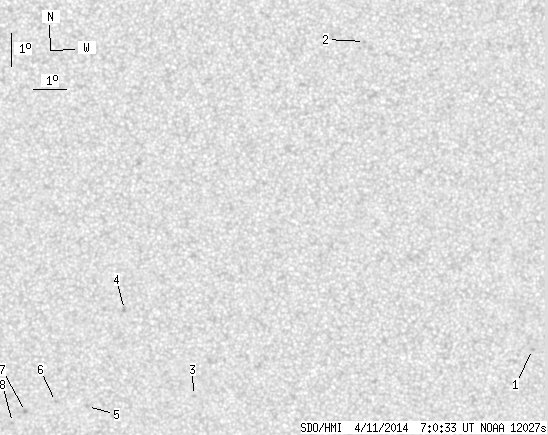

SDO HMI 2014-04-11 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.40 | 0.00 | 5.81 | -15.17 | 299.66 | -8.47 | 137.76 | 0.2265 | -399.1 | -396.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-11 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.58 | -15.39 | 311.45 | 3.32 | 198.67 | 0.1750 | 836.0 | 735.2 | |
| 0.00 | 1.24 | 0.00 | 0.61 | -6.09 | 306.28 | -1.85 | 96.11 | 0.0324 | 719.0 | 510.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -16.74 | 300.81 | -7.32 | 147.15 | 0.2259 | -668.0 | -677.1 | |
| 0.00 | 2.21 | 0.00 | 1.12 | -14.09 | 298.75 | -9.38 | 132.28 | 0.2147 | -851.0 | -753.9 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -17.02 | 297.43 | -10.70 | 137.62 | 0.2646 | -860.0 | -666.3 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -16.85 | 296.42 | -11.72 | 134.65 | 0.2744 | -836.0 | -559.9 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -17.13 | 295.43 | -12.70 | 133.19 | 0.2894 | -1013.0 | -838.3 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -17.46 | 294.99 | -13.14 | 133.10 | 0.2984 | -520.0 | -397.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
