SDO HMI 2014-04-11 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.21 | 132.50 | 30.51 | 174.44 | 12.91 | 13.25 | 65.66 | 286.53 | 0.9278 | -491.0 | -120.3 | |
|
previous
or next observation for the same group /

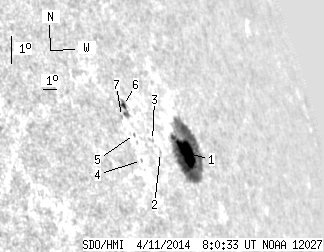

back to the solar disc SDO HMI 2014-04-11 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.36 | 121.29 | 28.37 | 161.46 | 12.85 | 13.53 | 65.94 | 286.40 | 0.9296 | -620.0 | -131.5 | |
| 0.00 | 0.26 | 0.00 | 0.32 | 12.68 | 11.46 | 63.88 | 286.68 | 0.9161 | -552.0 | -520.7 | |
| 0.00 | 0.71 | 0.00 | 0.85 | 13.02 | 11.06 | 63.47 | 287.14 | 0.9140 | -670.0 | -627.9 | |
| 0.00 | 0.71 | 0.00 | 0.82 | 12.29 | 9.98 | 62.40 | 286.61 | 0.9053 | 269.0 | 169.4 | |
| 0.00 | 0.79 | 0.00 | 0.92 | 13.10 | 9.86 | 62.28 | 287.51 | 0.9059 | 56.0 | 70.9 | |
| 1.85 | 7.42 | 2.14 | 8.56 | 13.98 | 9.54 | 61.95 | 288.54 | 0.9051 | 259.3 | 6.9 | |
| 0.00 | 1.32 | 0.00 | 1.51 | 13.61 | 9.23 | 61.65 | 288.21 | 0.9023 | 494.0 | 423.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
