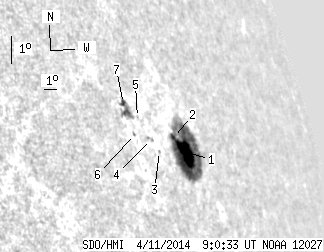

SDO HMI 2014-04-11 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.78 | 138.41 | 30.58 | 185.42 | 13.00 | 13.04 | 66.00 | 286.55 | 0.9300 | -496.5 | -113.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-11 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.60 | 120.05 | 26.64 | 163.63 | 12.87 | 13.52 | 66.48 | 286.30 | 0.9329 | -581.3 | -113.4 | |
| 1.41 | -1.00 | 1.86 | -1.00 | 13.26 | 12.73 | 65.69 | 286.89 | 0.9286 | -652.0 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.88 | 12.70 | 11.41 | 64.37 | 286.58 | 0.9194 | -443.0 | -400.9 | |
| 0.00 | 1.94 | 0.00 | 2.39 | 13.03 | 10.93 | 63.89 | 287.05 | 0.9167 | -504.0 | -519.1 | |
| 0.00 | 0.26 | 0.00 | 0.32 | 13.66 | 10.32 | 63.29 | 287.87 | 0.9137 | -315.0 | -396.3 | |
| 0.00 | 1.06 | 0.00 | 1.25 | 13.08 | 9.84 | 62.80 | 287.36 | 0.9095 | 99.0 | 105.3 | |
| 1.77 | 14.39 | 2.08 | 16.95 | 14.03 | 9.54 | 62.51 | 288.45 | 0.9090 | 333.8 | -43.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
