SDO HMI 2014-04-11 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.39 | 0.00 | 5.77 | -11.20 | 311.99 | 4.96 | 194.61 | 0.2009 | 407.3 | 328.8 | |
|
previous
or next observation for the same group /

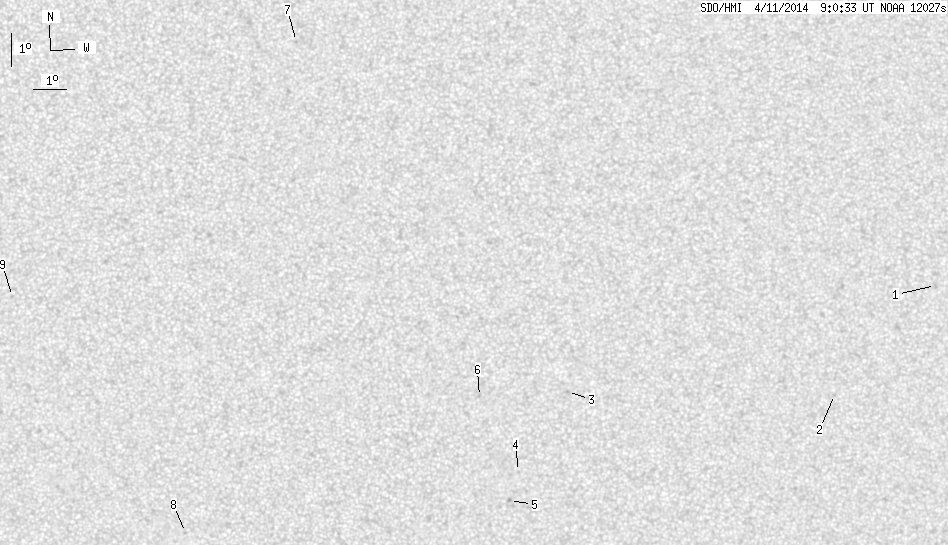

back to the solar disc SDO HMI 2014-04-11 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.30 | 0.00 | 1.19 | -8.49 | 324.36 | 17.32 | 260.37 | 0.3000 | 361.0 | 341.1 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -11.86 | 321.32 | 14.28 | 246.09 | 0.2653 | 638.0 | 488.0 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -11.90 | 312.99 | 5.95 | 223.93 | 0.1469 | 820.0 | 641.3 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -14.34 | 311.52 | 4.48 | 207.21 | 0.1663 | 643.0 | 548.4 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -15.22 | 311.25 | 4.22 | 203.60 | 0.1780 | 996.0 | 829.7 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -12.07 | 310.28 | 3.24 | 207.14 | 0.1218 | 853.0 | 608.9 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -1.39 | 304.72 | -2.32 | 27.28 | 0.0886 | 865.0 | 703.0 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -16.17 | 301.13 | -5.91 | 151.07 | 0.2054 | -771.0 | -592.7 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -8.94 | 295.98 | -11.06 | 106.23 | 0.1982 | -739.0 | -559.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
