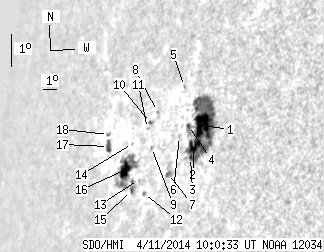

SDO HMI 2014-04-11 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.81 | 189.23 | 64.54 | 223.44 | 4.44 | 242.00 | -64.49 | 82.33 | 0.9088 | -168.0 | -38.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-11 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.39 | 120.04 | 28.91 | 131.82 | 4.82 | 244.19 | -62.30 | 81.55 | 0.8938 | -684.2 | -259.3 | |
| 10.24 | -1.00 | 11.36 | -1.00 | 4.25 | 243.75 | -62.74 | 82.25 | 0.8965 | -376.1 | 999999 | |
| 1.06 | -1.00 | 1.18 | -1.00 | 3.91 | 243.53 | -62.96 | 82.67 | 0.8978 | -137.5 | 999999 | |
| 1.06 | -1.00 | 1.20 | -1.00 | 4.91 | 243.24 | -63.25 | 81.62 | 0.9011 | -61.9 | 999999 | |
| 0.00 | 1.06 | 0.00 | 1.23 | 6.15 | 242.73 | -63.77 | 80.35 | 0.9064 | -346.0 | -282.4 | |
| 0.00 | 1.06 | 0.00 | 1.22 | 4.63 | 242.67 | -63.82 | 82.02 | 0.9050 | 354.0 | 304.7 | |
| 0.00 | 5.03 | 0.00 | 5.90 | 3.56 | 242.06 | -64.43 | 83.29 | 0.9083 | 421.0 | 386.4 | |
| 0.00 | 0.71 | 0.00 | 0.88 | 5.56 | 240.93 | -65.56 | 81.31 | 0.9184 | -123.0 | -104.0 | |
| 0.00 | 1.59 | 0.00 | 1.97 | 4.48 | 240.69 | -65.80 | 82.51 | 0.9189 | 403.0 | 373.8 | |
| 0.53 | 1.41 | 0.67 | 1.78 | 5.26 | 240.47 | -66.02 | 81.70 | 0.9212 | 516.5 | 469.9 | |
| 0.00 | 1.15 | 0.00 | 1.45 | 5.10 | 240.27 | -66.22 | 81.91 | 0.9223 | 453.0 | 409.4 | |
| 0.00 | 1.94 | 0.00 | 2.43 | 3.12 | 240.29 | -66.20 | 84.04 | 0.9202 | 541.0 | 450.6 | |
| 0.00 | 0.44 | 0.00 | 0.56 | 3.59 | 239.85 | -66.64 | 83.60 | 0.9236 | 547.0 | 491.0 | |
| 0.00 | 0.79 | 0.00 | 1.05 | 4.75 | 239.18 | -67.31 | 82.46 | 0.9290 | 359.0 | 382.4 | |
| 0.62 | 4.59 | 0.80 | 5.98 | 3.30 | 239.35 | -67.14 | 83.98 | 0.9267 | 243.3 | 292.7 | |
| 11.47 | 41.13 | 15.43 | 55.12 | 4.00 | 238.76 | -67.73 | 83.32 | 0.9310 | 433.6 | 213.5 | |
| 3.44 | 6.44 | 4.99 | 9.34 | 4.85 | 237.18 | -69.31 | 82.65 | 0.9414 | 346.5 | 170.6 | |
| 0.00 | 1.85 | 0.00 | 2.71 | 5.22 | 237.09 | -69.40 | 82.27 | 0.9422 | 196.0 | 173.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
