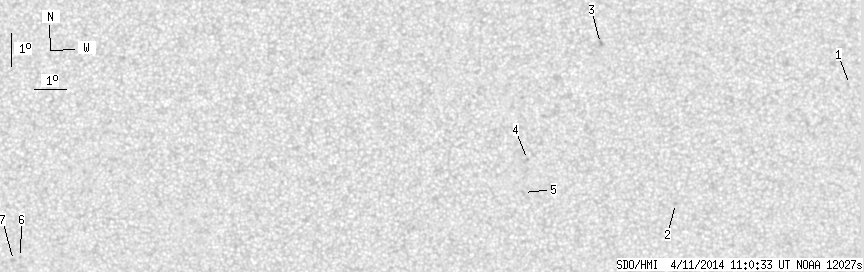

SDO HMI 2014-04-11 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.91 | 0.00 | 4.53 | -14.58 | 307.36 | 1.42 | 195.16 | 0.2159 | 371.7 | 293.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-11 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.27 | -11.76 | 321.30 | 15.35 | 247.76 | 0.2813 | 492.0 | 509.2 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -15.48 | 315.98 | 10.03 | 224.95 | 0.2388 | 902.0 | 719.0 | |
| 0.00 | 2.03 | 0.00 | 1.02 | -10.67 | 313.47 | 7.52 | 236.77 | 0.1546 | 812.0 | 780.4 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -14.20 | 311.29 | 5.35 | 211.92 | 0.1717 | 898.0 | 773.6 | |
| 0.00 | 1.68 | 0.00 | 0.85 | -15.20 | 311.19 | 5.25 | 208.52 | 0.1856 | 780.0 | 636.6 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -17.09 | 295.36 | -10.58 | 138.18 | 0.2643 | -796.0 | -626.8 | |
| 0.00 | 1.85 | 0.00 | 0.95 | -17.18 | 295.14 | -10.81 | 137.82 | 0.2680 | -486.0 | -425.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
