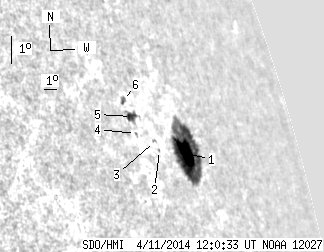

SDO HMI 2014-04-11 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.41 | 127.07 | 31.94 | 183.13 | 12.96 | 13.07 | 67.68 | 286.15 | 0.9398 | -404.3 | -87.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-11 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.44 | 110.93 | 26.97 | 162.80 | 12.87 | 13.48 | 68.09 | 285.97 | 0.9422 | -496.9 | -92.2 | |
| 0.00 | 0.88 | 0.00 | 1.17 | 12.75 | 11.26 | 65.87 | 286.31 | 0.9290 | -458.0 | -417.6 | |
| 0.00 | 1.41 | 0.00 | 1.86 | 13.01 | 11.02 | 65.62 | 286.63 | 0.9278 | -568.0 | -502.1 | |
| 0.00 | 0.71 | 0.00 | 0.88 | 13.13 | 9.68 | 64.29 | 287.06 | 0.9195 | 234.0 | 170.6 | |
| 3.97 | 9.35 | 4.97 | 11.71 | 13.67 | 9.66 | 64.27 | 287.63 | 0.9202 | -158.4 | -153.1 | |
| 0.00 | 3.79 | 0.00 | 4.71 | 14.14 | 9.33 | 63.94 | 288.21 | 0.9187 | 450.0 | 337.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
