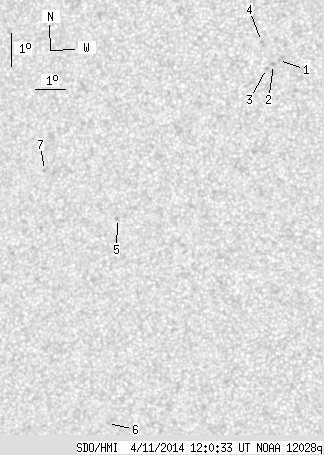

SDO HMI 2014-04-11 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.59 | 0.00 | 4.07 | -8.58 | 283.10 | -22.29 | 97.12 | 0.3843 | 131.1 | 55.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-11 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.32 | -5.43 | 286.27 | -19.13 | 89.61 | 0.3276 | 834.0 | 692.7 | |
| 0.00 | 1.85 | 0.00 | 0.97 | -5.54 | 286.10 | -19.29 | 89.98 | 0.3303 | 898.0 | 666.0 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -5.66 | 285.88 | -19.52 | 90.34 | 0.3339 | 770.0 | 630.5 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -4.84 | 285.74 | -19.65 | 87.92 | 0.3368 | 641.0 | 572.6 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -9.97 | 280.75 | -24.65 | 101.09 | 0.4203 | -755.0 | -610.3 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -16.15 | 279.72 | -25.67 | 114.31 | 0.4586 | -711.0 | -593.4 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -8.42 | 278.40 | -27.00 | 97.02 | 0.4543 | -759.0 | -679.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
