SDO HMI 2014-04-11 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.51 | 89.30 | 28.94 | 305.87 | -17.21 | 222.46 | -82.94 | 106.60 | 0.9885 | 119.8 | 106.5 | |
|
previous
or next observation for the same group /

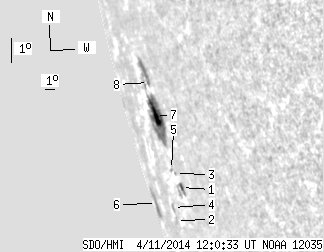

back to the solar disc SDO HMI 2014-04-11 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.68 | 7.50 | 4.39 | 20.07 | -18.78 | 224.90 | -80.50 | 108.05 | 0.9829 | -1.1 | 152.4 | |
| 0.00 | 2.82 | 0.00 | 10.00 | -19.53 | 221.79 | -83.60 | 108.96 | 0.9910 | 294.0 | 272.7 | |
| 0.00 | 0.88 | 0.00 | 2.37 | -18.32 | 224.67 | -80.72 | 107.58 | 0.9837 | 284.0 | 276.6 | |
| 0.00 | 2.38 | 0.00 | 8.29 | -19.14 | 222.13 | -83.26 | 108.55 | 0.9903 | 114.0 | 77.3 | |
| 0.00 | 1.06 | 0.00 | 2.98 | -18.14 | 224.21 | -81.18 | 107.43 | 0.9850 | 417.0 | 404.7 | |
| 0.00 | 9.80 | 0.00 | 80.48 | -18.54 | 217.47 | -87.93 | 108.27 | 0.9981 | 75.0 | -2.4 | |
| 8.21 | 47.83 | 22.87 | 133.39 | -16.47 | 224.28 | -81.12 | 105.73 | 0.9851 | 88.2 | 124.4 | |
| 0.62 | 17.03 | 1.68 | 48.29 | -15.45 | 224.73 | -80.66 | 104.67 | 0.9840 | 518.4 | 178.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
