SDO HMI 2014-04-11 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.23 | 0.00 | 8.88 | -19.20 | 325.67 | 20.82 | 233.01 | 0.4218 | -59.6 | 110.3 | |
|
previous
or next observation for the same group /

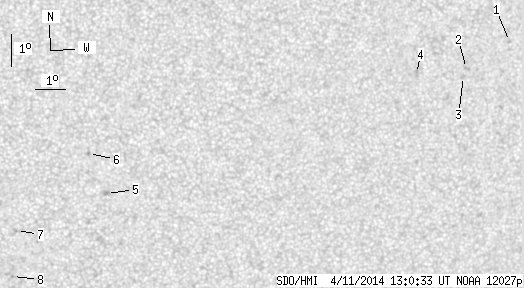

back to the solar disc SDO HMI 2014-04-11 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.70 | -16.43 | 332.48 | 27.63 | 246.40 | 0.4874 | 747.0 | 544.4 | |
| 0.00 | 2.47 | 0.00 | 1.39 | -17.32 | 331.10 | 26.25 | 243.73 | 0.4729 | 701.0 | 669.8 | |
| 0.00 | 2.38 | 0.00 | 1.34 | -17.57 | 331.03 | 26.19 | 243.19 | 0.4733 | 726.0 | 559.7 | |
| 0.00 | 3.26 | 0.00 | 1.81 | -17.54 | 329.39 | 24.54 | 241.95 | 0.4506 | 818.0 | 702.2 | |
| 0.00 | 3.62 | 0.00 | 1.92 | -21.58 | 319.38 | 14.54 | 220.45 | 0.3613 | -928.0 | -629.2 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -20.35 | 318.67 | 13.82 | 221.55 | 0.3392 | -870.0 | -668.4 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -22.80 | 316.50 | 11.65 | 212.43 | 0.3487 | -793.0 | -604.2 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -24.25 | 316.49 | 11.65 | 210.13 | 0.3683 | -878.0 | -694.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
