SDO HMI 2014-04-11 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.83 | 0.00 | 7.53 | -11.71 | 310.62 | 5.77 | 216.92 | 0.2049 | 309.8 | 325.0 | |
|
previous
or next observation for the same group /

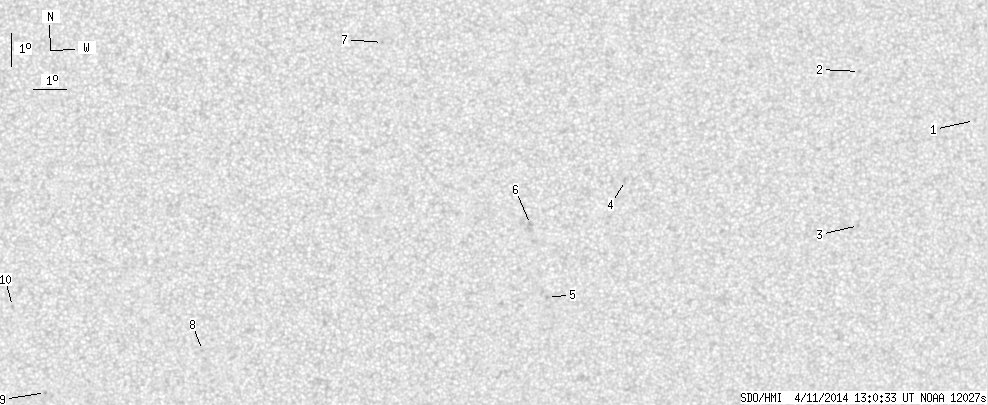

back to the solar disc SDO HMI 2014-04-11 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.74 | -8.64 | 324.48 | 19.63 | 260.74 | 0.3381 | 566.0 | 470.1 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -7.28 | 320.76 | 15.91 | 264.04 | 0.2746 | 813.0 | 602.2 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -11.92 | 320.94 | 16.10 | 248.09 | 0.2937 | 789.0 | 558.3 | |
| 0.00 | 2.82 | 0.00 | 1.42 | -10.71 | 313.58 | 8.73 | 240.22 | 0.1727 | 655.0 | 552.4 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -14.27 | 311.26 | 6.41 | 216.43 | 0.1831 | 947.0 | 795.2 | |
| 0.00 | 2.21 | 0.00 | 1.10 | -12.07 | 310.68 | 5.83 | 222.51 | 0.1477 | 967.0 | 707.8 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -6.61 | 306.11 | 1.26 | 239.52 | 0.0255 | 864.0 | 670.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -15.89 | 300.52 | -4.33 | 157.37 | 0.1896 | -823.0 | -678.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -17.11 | 295.52 | -9.33 | 141.69 | 0.2511 | -879.0 | -741.5 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -14.47 | 294.60 | -10.24 | 131.25 | 0.2301 | -801.0 | -566.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
