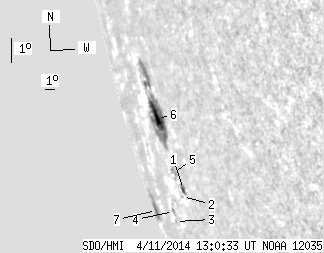

SDO HMI 2014-04-11 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.03 | 98.12 | 45.77 | 317.84 | -17.39 | 222.40 | -82.44 | 106.76 | 0.9872 | 9.6 | 112.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-11 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.03 | 3.88 | 5.05 | 9.66 | -18.82 | 225.06 | -79.78 | 108.06 | 0.9807 | -132.6 | -42.2 | |
| 0.00 | 1.32 | 0.00 | 3.45 | -18.99 | 224.53 | -80.31 | 108.25 | 0.9823 | 198.0 | 168.3 | |
| 0.00 | 1.24 | 0.00 | 4.15 | -19.50 | 221.65 | -83.19 | 108.91 | 0.9900 | 304.0 | 270.2 | |
| 0.00 | 2.47 | 0.00 | 8.15 | -19.21 | 221.97 | -82.88 | 108.60 | 0.9893 | 106.0 | 93.9 | |
| 0.00 | 4.50 | 0.00 | 11.83 | -18.21 | 224.37 | -80.48 | 107.47 | 0.9830 | 477.0 | 398.6 | |
| 5.12 | 72.62 | 13.50 | 192.47 | -16.52 | 224.48 | -80.36 | 105.74 | 0.9829 | 75.2 | 142.2 | |
| 3.88 | 12.09 | 27.22 | 88.13 | -18.71 | 217.29 | -87.56 | 108.41 | 0.9977 | -35.0 | -29.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
