SDO HMI 2014-04-11 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.45 | 0.00 | 7.79 | -13.76 | 306.06 | 1.76 | 196.97 | 0.1764 | 18.3 | 205.5 | |
|
previous
or next observation for the same group /

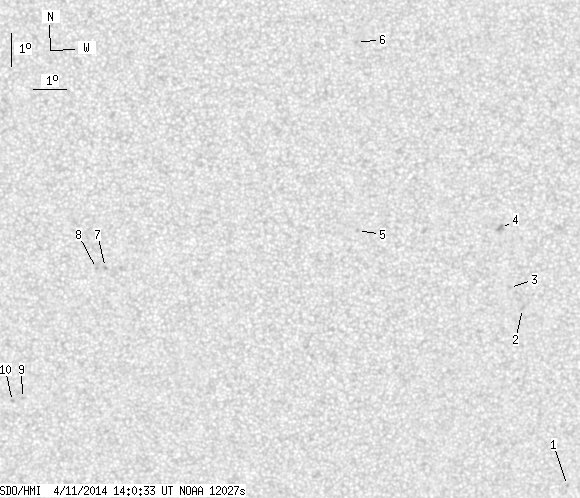

back to the solar disc SDO HMI 2014-04-11 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.55 | -19.98 | 313.03 | 8.73 | 210.24 | 0.2845 | -871.0 | -715.6 | |
| 0.00 | 1.76 | 0.00 | 0.89 | -14.57 | 311.37 | 7.07 | 218.11 | 0.1940 | 917.0 | 785.0 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -13.94 | 310.95 | 6.65 | 218.57 | 0.1810 | 895.0 | 678.7 | |
| 0.00 | 4.59 | 0.00 | 2.30 | -12.15 | 310.62 | 6.32 | 224.40 | 0.1546 | 1041.0 | 790.7 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -12.24 | 306.22 | 1.92 | 196.45 | 0.1162 | 802.0 | 571.5 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -6.58 | 306.16 | 1.87 | 249.03 | 0.0348 | 935.0 | 751.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -13.32 | 298.44 | -5.86 | 142.65 | 0.1645 | -958.0 | -816.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -13.35 | 298.16 | -6.14 | 141.47 | 0.1678 | -900.0 | -685.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -17.28 | 295.69 | -8.61 | 144.28 | 0.2459 | -830.0 | -535.6 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -17.36 | 295.37 | -8.93 | 143.51 | 0.2503 | -848.0 | -710.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
