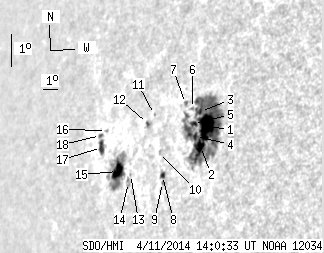

SDO HMI 2014-04-11 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.75 | 246.42 | 64.38 | 265.42 | 4.59 | 242.52 | -61.77 | 81.69 | 0.8885 | -170.0 | -85.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-11 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.56 | 178.05 | 26.97 | 181.77 | 4.82 | 244.35 | -59.95 | 81.12 | 0.8749 | -760.3 | -199.6 | |
| 5.47 | -1.00 | 5.59 | -1.00 | 4.24 | 244.06 | -60.23 | 81.84 | 0.8765 | -564.1 | 999999 | |
| 1.85 | -1.00 | 1.91 | -1.00 | 5.32 | 243.91 | -60.39 | 80.65 | 0.8793 | -303.7 | 999999 | |
| 2.29 | -1.00 | 2.37 | -1.00 | 4.58 | 243.71 | -60.59 | 81.52 | 0.8799 | 12.7 | 999999 | |
| 2.56 | -1.00 | 2.67 | -1.00 | 4.99 | 243.52 | -60.77 | 81.09 | 0.8819 | -37.5 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.39 | 5.46 | 243.39 | -60.91 | 80.59 | 0.8837 | -234.0 | -198.5 | |
| 0.00 | 2.12 | 0.00 | 2.26 | 5.66 | 242.91 | -61.39 | 80.46 | 0.8878 | -190.0 | -169.5 | |
| 1.94 | 3.71 | 2.13 | 4.07 | 3.57 | 241.73 | -62.56 | 82.98 | 0.8943 | 459.9 | 428.9 | |
| 0.00 | 1.32 | 0.00 | 1.45 | 3.35 | 241.76 | -62.54 | 83.22 | 0.8939 | 611.0 | 554.5 | |
| 0.00 | 0.88 | 0.00 | 0.98 | 4.30 | 241.37 | -62.93 | 82.23 | 0.8980 | 467.0 | 445.2 | |
| 0.00 | 0.79 | 0.00 | 0.91 | 5.51 | 240.90 | -63.40 | 80.99 | 0.9030 | -44.0 | -43.7 | |
| 0.88 | 2.21 | 1.02 | 2.56 | 5.27 | 240.46 | -63.84 | 81.33 | 0.9059 | 560.3 | 503.0 | |
| 0.00 | 0.79 | 0.00 | 0.95 | 3.81 | 239.51 | -64.79 | 83.08 | 0.9111 | 476.0 | 496.6 | |
| 0.00 | 3.97 | 0.00 | 4.74 | 3.58 | 239.40 | -64.90 | 83.35 | 0.9117 | 518.0 | 368.3 | |
| 11.73 | 40.76 | 14.51 | 50.52 | 3.99 | 238.53 | -65.76 | 83.03 | 0.9181 | 439.9 | 148.1 | |
| 0.00 | 1.24 | 0.00 | 1.61 | 5.35 | 237.45 | -66.85 | 81.75 | 0.9267 | 417.0 | 333.6 | |
| 4.59 | 9.26 | 6.04 | 12.21 | 4.85 | 237.16 | -67.14 | 82.32 | 0.9281 | 303.3 | 193.9 | |
| 0.88 | -17.00 | 1.17 | -17.00 | 5.24 | 237.00 | -67.30 | 81.94 | 0.9294 | 183.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
