SDO HMI 2014-04-11 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.33 | 428.41 | 44.85 | 254.05 | 11.39 | 274.12 | -28.52 | 58.67 | 0.5495 | -403.3 | -296.9 | |
|
previous
or next observation for the same group /

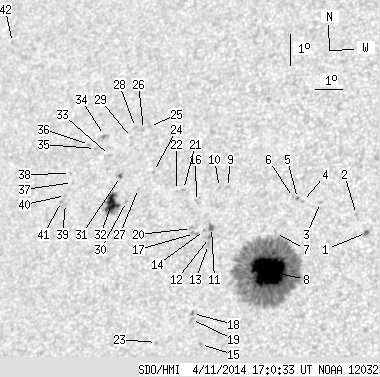

back to the solar disc SDO HMI 2014-04-11 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.62 | 2.91 | 0.35 | 1.67 | 12.00 | 278.18 | -24.47 | 53.66 | 0.5049 | -990.3 | -743.9 | |
| 0.00 | 0.88 | 0.00 | 0.51 | 12.59 | 277.78 | -24.86 | 53.16 | 0.5148 | -759.0 | -634.1 | |
| 0.00 | 1.32 | 0.00 | 0.77 | 13.03 | 276.50 | -26.14 | 53.83 | 0.5338 | 274.0 | 323.9 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 13.09 | 275.87 | -26.77 | 54.38 | 0.5418 | 895.0 | 706.3 | |
| 0.00 | 1.50 | 0.00 | 0.88 | 13.19 | 275.69 | -26.95 | 54.40 | 0.5448 | 870.0 | 742.2 | |
| 0.00 | 1.32 | 0.00 | 0.78 | 13.23 | 275.55 | -27.10 | 54.49 | 0.5469 | 520.0 | 465.2 | |
| 0.00 | 1.32 | 0.00 | 0.78 | 12.12 | 275.05 | -27.59 | 56.69 | 0.5440 | 116.0 | 89.3 | |
| 59.01 | 348.87 | 34.59 | 204.63 | 10.93 | 274.93 | -27.71 | 58.70 | 0.5364 | -1418.7 | -394.9 | |
| 0.00 | 1.59 | 0.00 | 0.96 | 13.67 | 273.17 | -29.47 | 56.06 | 0.5784 | -547.0 | -470.4 | |
| 0.00 | 0.88 | 0.00 | 0.54 | 13.69 | 272.88 | -29.76 | 56.29 | 0.5819 | -521.0 | -406.0 | |
| 1.23 | 3.09 | 0.75 | 1.86 | 12.43 | 272.77 | -29.88 | 58.27 | 0.5741 | -896.2 | -757.2 | |
| 0.00 | 1.59 | 0.00 | 0.96 | 12.11 | 272.73 | -29.91 | 58.78 | 0.5723 | -922.0 | -784.6 | |
| 0.00 | 1.76 | 0.00 | 1.06 | 11.89 | 272.73 | -29.92 | 59.12 | 0.5708 | -705.0 | -649.0 | |
| 0.00 | 1.06 | 0.00 | 0.64 | 12.35 | 272.53 | -30.12 | 58.60 | 0.5764 | -639.0 | -530.0 | |
| 0.00 | 1.50 | 0.00 | 0.89 | 8.77 | 272.77 | -29.87 | 64.06 | 0.5495 | 736.0 | 550.4 | |
| 0.00 | 1.68 | 0.00 | 1.02 | 13.29 | 272.12 | -30.53 | 57.54 | 0.5881 | -562.0 | -530.6 | |
| 0.00 | 2.91 | 0.00 | 1.77 | 12.27 | 272.18 | -30.46 | 59.00 | 0.5801 | -496.0 | -468.8 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 9.75 | 272.40 | -30.25 | 62.75 | 0.5606 | -654.0 | -522.1 | |
| 0.00 | 2.29 | 0.00 | 1.37 | 9.57 | 272.38 | -30.27 | 63.06 | 0.5596 | -544.0 | -514.9 | |
| 0.00 | 2.21 | 0.00 | 1.34 | 12.44 | 272.05 | -30.59 | 58.86 | 0.5828 | -365.0 | -322.7 | |
| 0.00 | 1.41 | 0.00 | 0.87 | 13.70 | 271.59 | -31.05 | 57.38 | 0.5972 | 773.0 | 603.3 | |
| 0.00 | 0.53 | 0.00 | 0.33 | 13.68 | 271.34 | -31.30 | 57.61 | 0.6001 | 694.0 | 515.0 | |
| 0.00 | 1.23 | 0.00 | 0.74 | 8.92 | 271.20 | -31.45 | 64.98 | 0.5709 | -679.0 | -592.0 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 14.34 | 270.40 | -32.24 | 57.43 | 0.6157 | 705.0 | 632.5 | |
| 0.00 | 1.68 | 0.00 | 1.07 | 15.80 | 270.00 | -32.64 | 55.71 | 0.6304 | 759.0 | 527.9 | |
| 0.00 | 1.23 | 0.00 | 0.79 | 15.72 | 269.79 | -32.85 | 55.99 | 0.6322 | 581.0 | 463.6 | |
| 0.00 | 0.79 | 0.00 | 0.50 | 13.82 | 269.93 | -32.71 | 58.52 | 0.6176 | 651.0 | 560.0 | |
| 0.00 | 1.32 | 0.00 | 0.85 | 15.80 | 269.48 | -33.16 | 56.13 | 0.6363 | 629.0 | 562.8 | |
| 0.00 | 0.88 | 0.00 | 0.56 | 15.49 | 269.39 | -33.26 | 56.63 | 0.6351 | 778.0 | 653.8 | |
| 0.00 | 0.97 | 0.00 | 0.61 | 13.43 | 269.55 | -33.10 | 59.37 | 0.6195 | 786.0 | 659.5 | |
| 0.62 | 1.76 | 0.39 | 1.12 | 14.25 | 269.19 | -33.45 | 58.48 | 0.6290 | 857.9 | 726.5 | |
| 13.85 | 23.20 | 8.77 | 14.69 | 13.40 | 269.00 | -33.65 | 59.82 | 0.6258 | 930.6 | 577.9 | |
| 0.00 | 1.32 | 0.00 | 0.85 | 14.95 | 268.66 | -33.98 | 57.91 | 0.6397 | 797.0 | 611.0 | |
| 0.00 | 2.03 | 0.00 | 1.32 | 15.61 | 268.35 | -34.30 | 57.24 | 0.6476 | 669.0 | 577.2 | |
| 0.00 | 0.88 | 0.00 | 0.57 | 15.21 | 268.08 | -34.56 | 57.98 | 0.6479 | 704.0 | 530.2 | |
| 0.00 | 1.32 | 0.00 | 0.86 | 15.36 | 267.83 | -34.82 | 57.97 | 0.6517 | 280.0 | 364.1 | |
| 0.00 | 1.06 | 0.00 | 0.69 | 14.17 | 267.40 | -35.24 | 59.88 | 0.6491 | 737.0 | 555.4 | |
| 0.00 | 1.06 | 0.00 | 0.69 | 14.46 | 267.27 | -35.37 | 59.57 | 0.6524 | 664.0 | 492.3 | |
| 0.00 | 0.71 | 0.00 | 0.46 | 13.51 | 267.25 | -35.39 | 60.89 | 0.6469 | 732.0 | 506.6 | |
| 0.00 | 0.88 | 0.00 | 0.57 | 13.77 | 267.21 | -35.44 | 60.57 | 0.6489 | 504.0 | 452.3 | |
| 0.00 | 0.97 | 0.00 | 0.63 | 13.58 | 267.08 | -35.56 | 60.90 | 0.6492 | 723.0 | 638.8 | |
| 0.00 | 1.41 | 0.00 | 1.00 | 18.92 | 263.98 | -38.67 | 56.03 | 0.7150 | -271.0 | -281.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
