SDO HMI 2014-04-11 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.94 | 0.00 | 4.10 | -7.31 | 285.88 | -16.21 | 96.06 | 0.2820 | 627.4 | 510.9 | |
|
previous
or next observation for the same group /

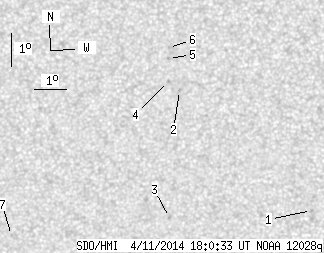

back to the solar disc SDO HMI 2014-04-11 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.54 | -9.51 | 290.27 | -11.82 | 107.99 | 0.2133 | 892.0 | 695.7 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -5.81 | 286.28 | -15.81 | 90.55 | 0.2723 | 970.0 | 759.2 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -9.61 | 285.81 | -16.28 | 104.05 | 0.2862 | 914.0 | 697.5 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -5.52 | 285.94 | -16.15 | 89.56 | 0.2781 | 819.0 | 583.6 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -4.83 | 285.96 | -16.13 | 87.07 | 0.2785 | 881.0 | 747.4 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -4.50 | 285.97 | -16.12 | 85.88 | 0.2788 | 691.0 | 525.6 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -9.98 | 280.69 | -21.40 | 102.33 | 0.3694 | -775.0 | -609.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
