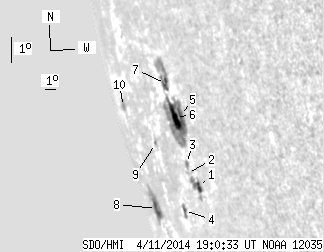

SDO HMI 2014-04-11 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.13 | 144.67 | 106.66 | 362.11 | -17.18 | 221.85 | -79.68 | 106.41 | 0.9785 | 96.6 | 80.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-11 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.68 | 12.97 | 9.27 | 25.91 | -18.78 | 224.87 | -76.67 | 107.92 | 0.9693 | 13.0 | 241.2 | |
| 0.00 | 0.88 | 0.00 | 1.84 | -18.25 | 224.06 | -77.48 | 107.40 | 0.9726 | 438.0 | 407.5 | |
| 0.88 | 3.26 | 1.81 | 6.68 | -17.97 | 224.34 | -77.19 | 107.09 | 0.9715 | 507.8 | 464.0 | |
| 0.00 | 5.12 | 0.00 | 12.46 | -19.22 | 221.92 | -79.62 | 108.46 | 0.9801 | 57.0 | 169.0 | |
| 5.20 | 68.10 | 10.05 | 137.35 | -16.56 | 225.40 | -76.14 | 105.61 | 0.9674 | 735.4 | 94.7 | |
| 12.79 | -5.00 | 25.75 | -5.00 | -16.55 | 224.72 | -76.82 | 105.63 | 0.9702 | 200.1 | 999999 | |
| 4.94 | 24.26 | 10.02 | 49.42 | -15.48 | 224.66 | -76.88 | 104.52 | 0.9706 | 419.0 | 187.7 | |
| 10.23 | 22.67 | 43.06 | 98.26 | -18.62 | 216.61 | -84.93 | 108.13 | 0.9938 | -132.8 | -37.7 | |
| 0.00 | 2.47 | 0.00 | 6.72 | -16.98 | 220.74 | -80.80 | 106.23 | 0.9841 | 57.0 | 43.1 | |
| 1.41 | 4.94 | 6.70 | 23.47 | -15.35 | 216.10 | -85.43 | 104.88 | 0.9951 | -301.1 | -223.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
