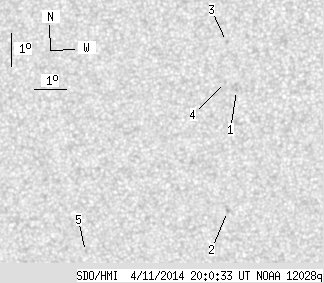

SDO HMI 2014-04-11 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.73 | 0.00 | 2.96 | -7.34 | 285.17 | -15.81 | 95.61 | 0.2755 | 473.8 | 437.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-11 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.59 | -6.01 | 286.26 | -14.73 | 91.29 | 0.2540 | 853.0 | 683.7 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -9.64 | 285.84 | -15.15 | 105.02 | 0.2679 | 841.0 | 702.3 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -4.53 | 285.98 | -15.00 | 85.57 | 0.2600 | 818.0 | 631.0 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -5.76 | 285.92 | -15.06 | 90.34 | 0.2597 | 594.0 | 452.5 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -10.70 | 281.23 | -19.75 | 105.16 | 0.3456 | -737.0 | -490.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
