SDO HMI 2014-04-11 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.62 | 0.00 | 12.43 | -13.23 | 303.59 | 3.71 | 194.31 | 0.1848 | 2.1 | -43.6 | |
|
previous
or next observation for the same group /

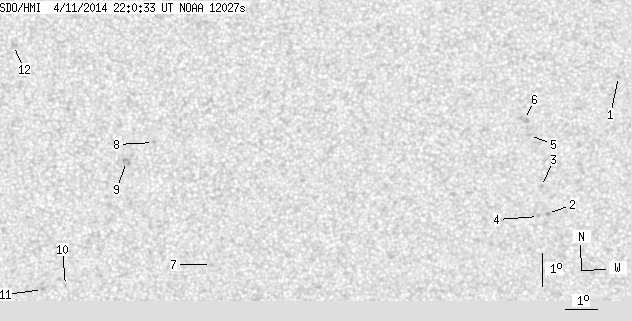

back to the solar disc SDO HMI 2014-04-11 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.54 | -10.80 | 313.53 | 13.65 | 249.07 | 0.2494 | 780.0 | 664.2 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -14.99 | 311.50 | 11.62 | 230.49 | 0.2533 | 802.0 | 694.6 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -14.17 | 311.27 | 11.39 | 232.62 | 0.2420 | 809.0 | 666.9 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -15.08 | 311.22 | 11.34 | 229.53 | 0.2507 | 661.0 | 593.4 | |
| 0.00 | 1.59 | 0.00 | 0.81 | -12.63 | 310.82 | 10.94 | 237.16 | 0.2214 | 796.0 | 605.1 | |
| 0.00 | 4.76 | 0.00 | 2.42 | -12.15 | 310.64 | 10.76 | 238.67 | 0.2147 | 780.0 | 744.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -16.65 | 300.98 | 1.10 | 185.63 | 0.1887 | -774.0 | -602.7 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -12.94 | 299.18 | -0.70 | 174.48 | 0.1241 | -832.0 | -549.1 | |
| 0.00 | 4.59 | 0.00 | 2.29 | -13.51 | 298.34 | -1.53 | 168.91 | 0.1361 | -787.0 | -793.8 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -17.27 | 296.39 | -3.49 | 163.64 | 0.2072 | -707.0 | -542.7 | |
| 0.00 | 1.59 | 0.00 | 0.81 | -17.39 | 295.66 | -4.22 | 160.67 | 0.2129 | -756.0 | -685.3 | |
| 0.00 | 3.79 | 0.00 | 1.89 | -9.98 | 294.92 | -4.96 | 130.22 | 0.1121 | -747.0 | -558.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
