SDO HMI 2014-04-11 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.66 | 180.61 | 90.99 | 408.12 | -17.34 | 221.43 | -78.45 | 106.52 | 0.9741 | 134.4 | 55.5 | |
|
previous
or next observation for the same group /

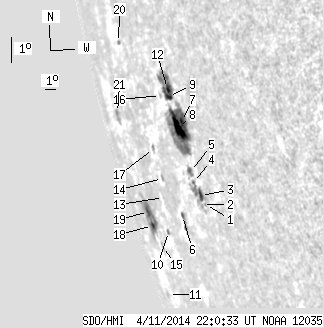

back to the solar disc SDO HMI 2014-04-11 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 1.09 | -19.04 | 225.18 | -74.70 | 108.15 | 0.9608 | -370.0 | -327.7 | |
| 0.00 | 1.76 | 0.00 | 3.16 | -19.00 | 224.85 | -75.03 | 108.12 | 0.9623 | 83.0 | 7.8 | |
| 3.88 | 15.35 | 6.91 | 27.77 | -18.73 | 224.96 | -74.92 | 107.83 | 0.9618 | -191.0 | 203.4 | |
| 0.62 | -3.00 | 1.12 | -3.00 | -18.29 | 224.64 | -75.23 | 107.38 | 0.9633 | 94.6 | 999999 | |
| 0.00 | 4.24 | 0.00 | 7.69 | -17.94 | 224.70 | -75.18 | 107.02 | 0.9631 | 516.0 | 486.3 | |
| 1.06 | 5.21 | 2.27 | 11.19 | -19.07 | 221.97 | -77.91 | 108.25 | 0.9741 | 92.1 | 257.2 | |
| 2.21 | 75.88 | 3.86 | 136.78 | -16.44 | 225.35 | -74.53 | 105.44 | 0.9602 | 619.8 | 179.4 | |
| 12.71 | -7.00 | 22.87 | -7.00 | -16.60 | 224.80 | -75.08 | 105.62 | 0.9627 | 272.7 | 999999 | |
| 4.32 | 26.21 | 7.87 | 47.61 | -15.59 | 224.68 | -75.19 | 104.58 | 0.9634 | 425.9 | 178.8 | |
| 0.71 | 1.85 | 1.91 | 5.01 | -19.29 | 219.07 | -80.80 | 108.58 | 0.9838 | -223.9 | -140.4 | |
| 0.00 | 1.59 | 0.00 | 7.58 | -20.82 | 214.15 | -85.73 | 110.39 | 0.9949 | -97.0 | -25.7 | |
| 7.06 | -9.00 | 12.75 | -9.00 | -15.35 | 224.81 | -75.07 | 104.32 | 0.9629 | 446.1 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.66 | -18.32 | 220.11 | -79.77 | 107.54 | 0.9807 | 94.0 | 103.0 | |
| 0.00 | 1.94 | 0.00 | 4.53 | -17.79 | 220.88 | -79.00 | 106.98 | 0.9782 | 234.0 | 182.5 | |
| 0.00 | 2.29 | 0.00 | 7.53 | -19.57 | 216.99 | -82.89 | 108.96 | 0.9893 | -422.0 | -380.2 | |
| 0.00 | 1.50 | 0.00 | 2.88 | -15.47 | 223.79 | -76.09 | 104.48 | 0.9674 | -154.0 | -179.0 | |
| 0.00 | 2.38 | 0.00 | 5.57 | -16.85 | 220.91 | -78.97 | 106.01 | 0.9783 | 214.0 | 117.7 | |
| 2.12 | 32.65 | 7.41 | 115.19 | -18.84 | 216.41 | -83.47 | 108.25 | 0.9908 | -52.9 | -116.1 | |
| 5.82 | -18.00 | 20.35 | -18.00 | -18.41 | 216.56 | -83.32 | 107.81 | 0.9905 | -89.3 | 999999 | |
| 0.53 | 1.59 | 1.36 | 4.08 | -13.43 | 219.89 | -79.99 | 102.58 | 0.9823 | 155.2 | 70.2 | |
| 0.62 | 5.29 | 2.31 | 19.80 | -15.26 | 216.32 | -83.56 | 104.65 | 0.9915 | -389.0 | -243.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
