SDO HMI 2014-04-11 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.52 | 0.00 | 11.15 | -19.68 | 325.03 | 25.70 | 236.36 | 0.4905 | 105.9 | -27.5 | |
|
previous
or next observation for the same group /

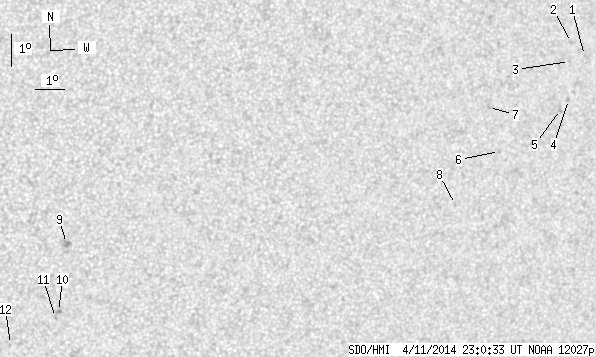

back to the solar disc SDO HMI 2014-04-11 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.27 | -15.47 | 333.24 | 33.91 | 251.16 | 0.5704 | 393.0 | 325.6 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -15.10 | 332.69 | 33.36 | 251.59 | 0.5617 | 630.0 | 456.1 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -15.68 | 332.72 | 33.39 | 250.59 | 0.5639 | 746.0 | 604.1 | |
| 0.00 | 1.94 | 0.00 | 1.17 | -16.84 | 332.90 | 33.57 | 248.68 | 0.5704 | 560.0 | 465.4 | |
| 0.00 | 2.65 | 0.00 | 1.59 | -17.16 | 332.66 | 33.34 | 248.03 | 0.5684 | 669.0 | 583.1 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -18.56 | 330.67 | 31.34 | 244.63 | 0.5478 | 706.0 | 606.6 | |
| 0.00 | 1.24 | 0.00 | 0.72 | -17.23 | 330.00 | 30.68 | 246.62 | 0.5330 | 669.0 | 584.0 | |
| 0.00 | 1.24 | 0.00 | 0.73 | -20.27 | 329.39 | 30.06 | 240.90 | 0.5399 | 116.0 | 144.8 | |
| 0.00 | 4.94 | 0.00 | 2.66 | -21.99 | 315.98 | 16.66 | 223.34 | 0.3889 | -830.0 | -718.1 | |
| 0.00 | 2.21 | 0.00 | 1.20 | -24.14 | 315.98 | 16.66 | 219.50 | 0.4130 | -908.0 | -778.4 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -24.33 | 315.90 | 16.58 | 219.05 | 0.4144 | -827.0 | -690.5 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -25.22 | 314.47 | 15.15 | 215.24 | 0.4114 | -653.0 | -541.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
