SDO HMI 2014-04-12 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.43 | 202.90 | 81.72 | 431.06 | -17.37 | 221.06 | -77.72 | 106.53 | 0.9713 | 222.9 | 28.8 | |
|
previous
or next observation for the same group /

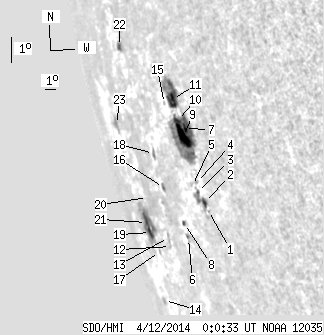

back to the solar disc SDO HMI 2014-04-12 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 1.90 | -18.98 | 225.17 | -73.60 | 108.09 | 0.9556 | -458.0 | -383.5 | |
| 3.00 | 13.68 | 5.01 | 23.24 | -18.72 | 225.03 | -73.75 | 107.81 | 0.9563 | -241.2 | 158.9 | |
| 0.53 | -2.00 | 0.90 | -2.00 | -18.36 | 224.63 | -74.14 | 107.44 | 0.9582 | 36.7 | 999999 | |
| 0.00 | 1.32 | 0.00 | 2.23 | -18.07 | 224.86 | -73.91 | 107.13 | 0.9572 | 440.0 | 431.0 | |
| 0.00 | 0.53 | 0.00 | 0.92 | -18.11 | 224.34 | -74.44 | 107.19 | 0.9597 | 414.0 | 398.2 | |
| 0.00 | 2.38 | 0.00 | 4.81 | -19.55 | 221.85 | -76.92 | 108.72 | 0.9703 | 434.0 | 327.9 | |
| 1.77 | 80.14 | 2.92 | 135.11 | -16.41 | 225.28 | -73.49 | 105.39 | 0.9552 | 722.0 | 212.5 | |
| 0.79 | 1.94 | 1.59 | 3.88 | -19.09 | 221.99 | -76.78 | 108.24 | 0.9698 | 200.9 | 150.5 | |
| 14.47 | -7.00 | 24.36 | -7.00 | -16.63 | 224.95 | -73.83 | 105.63 | 0.9569 | 342.5 | 999999 | |
| 0.26 | -7.00 | 0.45 | -7.00 | -16.11 | 224.79 | -73.98 | 105.09 | 0.9577 | 568.7 | 999999 | |
| 12.97 | 31.24 | 21.93 | 53.05 | -15.46 | 224.87 | -73.91 | 104.41 | 0.9574 | 445.5 | 159.6 | |
| 0.00 | 1.24 | 0.00 | 3.05 | -19.52 | 218.98 | -79.79 | 108.78 | 0.9806 | -289.0 | -200.1 | |
| 0.00 | 2.74 | 0.00 | 6.66 | -19.25 | 219.16 | -79.62 | 108.49 | 0.9801 | 9.0 | -6.3 | |
| 0.00 | 2.38 | 0.00 | 9.70 | -20.76 | 214.03 | -84.74 | 110.27 | 0.9931 | -13.0 | -5.6 | |
| 0.00 | 1.32 | 0.00 | 2.37 | -15.49 | 223.89 | -74.88 | 104.47 | 0.9620 | -118.0 | -152.7 | |
| 0.97 | 3.00 | 2.11 | 6.51 | -17.83 | 220.80 | -77.98 | 106.98 | 0.9746 | 162.3 | 140.0 | |
| 0.00 | 1.41 | 0.00 | 4.20 | -19.47 | 216.83 | -81.95 | 108.81 | 0.9870 | -368.0 | -382.6 | |
| 0.00 | 3.18 | 0.00 | 6.87 | -16.76 | 220.85 | -77.93 | 105.88 | 0.9745 | 145.0 | 85.7 | |
| 4.06 | 43.42 | 12.85 | 132.48 | -18.81 | 216.36 | -82.41 | 108.18 | 0.9883 | -31.9 | -137.5 | |
| 0.00 | 1.24 | 0.00 | 3.38 | -17.86 | 217.92 | -80.86 | 107.13 | 0.9842 | -81.0 | -82.9 | |
| 1.32 | -19.00 | 4.24 | -19.00 | -18.48 | 216.23 | -82.54 | 107.85 | 0.9886 | 146.1 | 999999 | |
| 2.29 | 4.41 | 5.36 | 10.29 | -13.34 | 220.05 | -78.72 | 102.42 | 0.9780 | 135.4 | 101.6 | |
| 0.00 | 6.18 | 0.00 | 20.41 | -15.38 | 216.18 | -82.60 | 104.72 | 0.9893 | -471.0 | -287.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
