SDO HMI 2014-04-12 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.05 | 0.00 | 14.29 | -19.97 | 323.77 | 25.55 | 236.04 | 0.4902 | 83.9 | -87.9 | |
|
previous
or next observation for the same group /

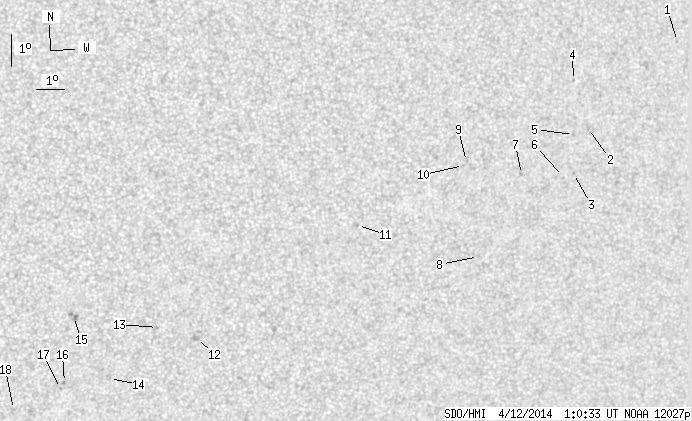

back to the solar disc SDO HMI 2014-04-12 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.67 | -12.67 | 336.20 | 37.98 | 256.91 | 0.6186 | 494.0 | 350.2 | |
| 0.00 | 1.59 | 0.00 | 0.97 | -15.50 | 333.28 | 35.06 | 251.50 | 0.5859 | 421.0 | 342.4 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -16.89 | 332.99 | 34.77 | 249.06 | 0.5864 | 484.0 | 431.7 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -14.07 | 332.46 | 34.23 | 253.66 | 0.5708 | 563.0 | 523.6 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -15.71 | 332.75 | 34.53 | 250.96 | 0.5794 | 734.0 | 636.4 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -17.01 | 332.63 | 34.41 | 248.73 | 0.5821 | 436.0 | 505.5 | |
| 0.00 | 1.50 | 0.00 | 0.90 | -17.03 | 331.05 | 32.82 | 248.01 | 0.5611 | 727.0 | 516.1 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -19.62 | 329.98 | 31.75 | 243.03 | 0.5583 | 618.0 | 536.9 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -16.74 | 328.96 | 30.73 | 247.53 | 0.5317 | 609.0 | 484.9 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -16.86 | 328.87 | 30.65 | 247.26 | 0.5311 | 681.0 | 535.5 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -18.88 | 325.40 | 27.18 | 241.37 | 0.4943 | 756.0 | 620.2 | |
| 0.00 | 3.97 | 0.00 | 2.21 | -22.61 | 320.34 | 22.12 | 229.68 | 0.4578 | -671.0 | -368.0 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -22.31 | 318.93 | 20.71 | 228.52 | 0.4385 | -630.0 | -502.5 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -23.96 | 317.52 | 19.29 | 223.70 | 0.4388 | -539.0 | -465.6 | |
| 0.00 | 4.59 | 0.00 | 2.48 | -22.05 | 316.01 | 17.78 | 224.97 | 0.4022 | -747.0 | -711.6 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -24.13 | 315.98 | 17.76 | 221.20 | 0.4244 | -895.0 | -776.0 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -24.33 | 315.87 | 17.65 | 220.70 | 0.4254 | -722.0 | -643.0 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -25.04 | 314.34 | 16.12 | 217.14 | 0.4184 | -809.0 | -527.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
