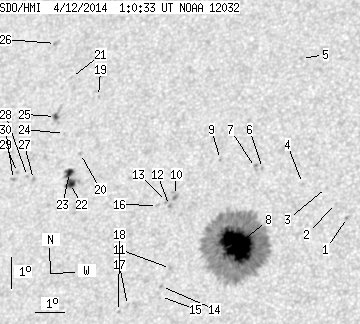

SDO HMI 2014-04-12 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.74 | 418.30 | 43.23 | 238.08 | 11.32 | 274.25 | -23.97 | 54.20 | 0.4926 | -643.2 | -334.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-12 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.73 | 11.66 | 278.51 | -19.71 | 48.20 | 0.4449 | -861.0 | -734.0 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 12.12 | 278.09 | -20.14 | 48.04 | 0.4545 | -726.0 | -574.9 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 12.64 | 277.75 | -20.47 | 47.65 | 0.4637 | -619.0 | -432.0 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 12.80 | 276.94 | -21.28 | 48.49 | 0.4745 | 840.0 | 622.3 | |
| 0.00 | 1.50 | 0.00 | 0.87 | 16.83 | 276.49 | -21.73 | 43.09 | 0.5208 | -75.0 | -82.6 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 13.33 | 275.56 | -22.66 | 49.42 | 0.4956 | 571.0 | 526.1 | |
| 0.00 | 3.00 | 0.00 | 1.71 | 13.37 | 275.32 | -22.90 | 49.65 | 0.4987 | 694.0 | 591.1 | |
| 63.73 | 356.81 | 35.97 | 201.46 | 10.93 | 274.91 | -23.31 | 54.15 | 0.4813 | -1383.8 | -416.2 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 13.68 | 274.11 | -24.11 | 50.62 | 0.5156 | -638.0 | -542.1 | |
| 0.00 | 4.06 | 0.00 | 2.36 | 12.60 | 272.66 | -25.56 | 53.90 | 0.5232 | -714.0 | -656.1 | |
| 0.00 | 1.85 | 0.00 | 1.06 | 10.31 | 272.75 | -25.48 | 57.59 | 0.5033 | -687.0 | -484.6 | |
| 0.00 | 1.59 | 0.00 | 0.92 | 12.29 | 272.52 | -25.70 | 54.54 | 0.5223 | -871.0 | -767.7 | |
| 0.00 | 1.68 | 0.00 | 0.97 | 12.43 | 272.41 | -25.82 | 54.45 | 0.5248 | -708.0 | -566.9 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 9.76 | 272.49 | -25.74 | 58.79 | 0.5024 | -735.0 | -666.1 | |
| 0.00 | 0.35 | 0.00 | 0.20 | 9.45 | 272.48 | -25.74 | 59.34 | 0.5001 | -367.0 | -355.5 | |
| 0.00 | 1.59 | 0.00 | 0.93 | 12.31 | 272.11 | -26.11 | 54.94 | 0.5274 | -397.0 | -373.3 | |
| 0.00 | 1.85 | 0.00 | 1.07 | 9.22 | 271.38 | -26.85 | 60.78 | 0.5128 | -606.0 | -482.1 | |
| 0.00 | 0.88 | 0.00 | 0.51 | 9.05 | 271.08 | -27.14 | 61.35 | 0.5155 | -664.0 | -567.4 | |
| 0.00 | 0.88 | 0.00 | 0.54 | 15.92 | 269.58 | -28.64 | 52.08 | 0.5865 | 666.0 | 530.8 | |
| 0.00 | 1.68 | 0.00 | 1.01 | 14.11 | 269.21 | -29.02 | 55.02 | 0.5763 | 865.0 | 645.9 | |
| 0.00 | 0.97 | 0.00 | 0.60 | 16.59 | 268.50 | -29.72 | 52.16 | 0.6039 | -460.0 | -422.3 | |
| 5.83 | 16.33 | 3.51 | 9.85 | 13.17 | 268.98 | -29.25 | 56.62 | 0.5718 | 887.0 | 662.8 | |
| 4.50 | -22.00 | 2.72 | -22.00 | 13.52 | 268.90 | -29.33 | 56.17 | 0.5755 | 837.5 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.38 | 14.79 | 268.54 | -29.69 | 54.65 | 0.5893 | 697.0 | 596.1 | |
| 1.68 | 7.94 | 1.03 | 4.90 | 15.35 | 268.13 | -30.10 | 54.21 | 0.5984 | 857.7 | 591.0 | |
| 0.00 | 2.47 | 0.00 | 1.56 | 17.74 | 267.71 | -30.51 | 51.33 | 0.6216 | 748.0 | 572.4 | |
| 0.00 | 1.85 | 0.00 | 1.13 | 13.37 | 267.63 | -30.59 | 57.49 | 0.5894 | 791.0 | 609.1 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 13.48 | 267.40 | -30.82 | 57.53 | 0.5929 | 791.0 | 692.1 | |
| 0.00 | 0.88 | 0.00 | 0.54 | 13.63 | 267.02 | -31.21 | 57.63 | 0.5984 | 729.0 | 640.5 | |
| 0.00 | 1.85 | 0.00 | 1.14 | 13.41 | 266.90 | -31.32 | 58.03 | 0.5983 | 708.0 | 538.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
