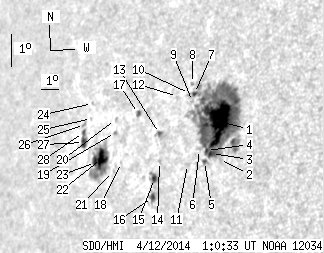

SDO HMI 2014-04-12 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.58 | 343.03 | 69.71 | 305.03 | 4.47 | 243.07 | -55.15 | 80.55 | 0.8306 | -232.1 | -137.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-12 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.93 | 249.91 | 38.23 | 213.46 | 4.65 | 244.79 | -53.43 | 79.98 | 0.8151 | -948.8 | -307.7 | |
| 0.00 | 0.97 | 0.00 | 0.82 | 3.49 | 244.90 | -53.32 | 81.38 | 0.8119 | -193.0 | -176.4 | |
| 3.97 | -1.00 | 3.39 | -1.00 | 3.71 | 244.48 | -53.75 | 81.20 | 0.8165 | -461.3 | 999999 | |
| 1.24 | -1.00 | 1.06 | -1.00 | 3.82 | 244.21 | -54.01 | 81.12 | 0.8193 | -218.3 | 999999 | |
| 0.97 | 1.94 | 0.83 | 1.67 | 3.49 | 244.14 | -54.09 | 81.53 | 0.8195 | -299.2 | -137.5 | |
| 0.00 | 0.97 | 0.00 | 0.84 | 3.88 | 243.84 | -54.38 | 81.12 | 0.8231 | 524.0 | 525.7 | |
| 1.32 | -1.00 | 1.17 | -1.00 | 5.63 | 243.38 | -54.85 | 79.14 | 0.8307 | -330.7 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.18 | 5.95 | 243.22 | -55.00 | 78.80 | 0.8327 | -374.0 | -251.3 | |
| 0.00 | 1.06 | 0.00 | 0.94 | 5.39 | 243.30 | -54.92 | 79.44 | 0.8309 | -184.0 | -109.4 | |
| 0.00 | 1.32 | 0.00 | 1.18 | 5.65 | 243.11 | -55.12 | 79.17 | 0.8333 | 471.0 | 273.2 | |
| 0.00 | 2.12 | 0.00 | 1.86 | 3.48 | 243.25 | -54.98 | 81.73 | 0.8281 | 313.0 | 255.1 | |
| 0.00 | 0.53 | 0.00 | 0.48 | 5.62 | 242.47 | -55.75 | 79.36 | 0.8392 | 213.0 | 182.2 | |
| 0.97 | 5.65 | 0.89 | 5.19 | 4.56 | 241.63 | -56.60 | 80.78 | 0.8452 | 756.5 | 559.3 | |
| 0.00 | 1.50 | 0.00 | 1.37 | 3.70 | 241.72 | -56.50 | 81.77 | 0.8430 | 628.0 | 563.5 | |
| 2.91 | 5.47 | 2.68 | 5.04 | 3.20 | 241.49 | -56.73 | 82.39 | 0.8444 | 804.5 | 542.2 | |
| 2.12 | 3.71 | 1.94 | 3.40 | 2.63 | 241.42 | -56.80 | 83.08 | 0.8441 | 743.9 | 628.7 | |
| 1.15 | 2.65 | 1.10 | 2.53 | 5.28 | 240.35 | -57.87 | 80.20 | 0.8578 | 580.4 | 526.3 | |
| 0.00 | 0.26 | 0.00 | 0.26 | 3.86 | 239.55 | -58.67 | 81.99 | 0.8627 | 571.0 | 591.3 | |
| 0.00 | 1.50 | 0.00 | 1.49 | 4.82 | 239.08 | -59.15 | 80.99 | 0.8682 | 529.0 | 436.8 | |
| 0.00 | 1.06 | 0.00 | 1.05 | 5.22 | 239.02 | -59.21 | 80.54 | 0.8692 | 484.0 | 387.2 | |
| 0.00 | 0.62 | 0.00 | 0.61 | 3.63 | 239.05 | -59.18 | 82.34 | 0.8668 | 237.0 | 291.1 | |
| 9.53 | 48.82 | 9.62 | 49.41 | 4.09 | 238.33 | -59.89 | 81.95 | 0.8734 | 801.9 | 278.8 | |
| 3.53 | -22.00 | 3.61 | -22.00 | 4.00 | 237.98 | -60.24 | 82.11 | 0.8763 | 198.8 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.74 | 5.84 | 237.51 | -60.71 | 80.13 | 0.8826 | 275.0 | 238.4 | |
| 0.00 | 0.26 | 0.00 | 0.28 | 5.38 | 237.53 | -60.69 | 80.64 | 0.8818 | 227.0 | 230.0 | |
| 0.00 | 2.03 | 0.00 | 2.14 | 5.24 | 237.12 | -61.11 | 80.88 | 0.8849 | 270.0 | 142.5 | |
| 3.97 | 8.65 | 4.17 | 9.09 | 4.69 | 237.14 | -61.08 | 81.49 | 0.8840 | 355.2 | 273.7 | |
| 0.97 | -27.00 | 1.02 | -27.00 | 5.00 | 237.09 | -61.13 | 81.15 | 0.8848 | 223.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
