SDO HMI 2014-04-12 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.39 | 220.51 | 90.62 | 457.82 | -17.35 | 220.86 | -77.36 | 106.50 | 0.9701 | 169.0 | 22.4 | |
|
previous
or next observation for the same group /

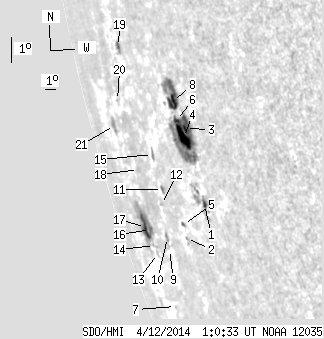

back to the solar disc SDO HMI 2014-04-12 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.03 | 22.95 | 3.30 | 37.81 | -18.74 | 225.00 | -73.23 | 107.83 | 0.9538 | -265.1 | 102.2 | |
| 0.00 | 0.97 | 0.00 | 1.89 | -19.50 | 221.76 | -76.46 | 108.67 | 0.9684 | 317.0 | 340.9 | |
| 2.74 | 77.59 | 4.38 | 126.76 | -16.38 | 225.40 | -72.83 | 105.35 | 0.9519 | 768.2 | 209.4 | |
| 14.48 | -3.00 | 23.63 | -3.00 | -16.62 | 224.94 | -73.28 | 105.61 | 0.9542 | 369.7 | 999999 | |
| 0.71 | 1.77 | 1.36 | 3.41 | -19.08 | 221.98 | -76.25 | 108.22 | 0.9676 | 284.8 | 237.5 | |
| 2.12 | -3.00 | 3.50 | -3.00 | -16.07 | 224.72 | -73.51 | 105.03 | 0.9554 | 406.9 | 999999 | |
| 0.00 | 0.53 | 0.00 | 1.53 | -21.17 | 216.58 | -81.65 | 110.53 | 0.9859 | -213.0 | -213.2 | |
| 10.06 | 31.34 | 16.53 | 51.55 | -15.49 | 224.83 | -73.39 | 104.42 | 0.9549 | 417.6 | 205.5 | |
| 0.00 | 0.62 | 0.00 | 1.47 | -19.58 | 219.00 | -79.23 | 108.82 | 0.9788 | -279.0 | -240.1 | |
| 0.00 | 3.27 | 0.00 | 7.58 | -19.23 | 219.31 | -78.91 | 108.45 | 0.9777 | 138.0 | -18.1 | |
| 0.00 | 2.82 | 0.00 | 5.90 | -17.85 | 220.78 | -77.44 | 106.99 | 0.9725 | 240.0 | 176.3 | |
| 0.00 | 1.41 | 0.00 | 3.10 | -18.25 | 220.01 | -78.21 | 107.42 | 0.9754 | 150.0 | 101.6 | |
| 0.00 | 1.94 | 0.00 | 5.51 | -19.50 | 216.84 | -81.38 | 108.82 | 0.9854 | -499.0 | -437.9 | |
| 0.00 | 2.03 | 0.00 | 5.77 | -19.24 | 216.80 | -81.42 | 108.55 | 0.9856 | -474.0 | -401.0 | |
| 0.00 | 3.71 | 0.00 | 7.70 | -16.76 | 220.87 | -77.36 | 105.86 | 0.9723 | 99.0 | 59.6 | |
| 1.59 | 52.17 | 4.42 | 151.58 | -18.75 | 217.06 | -81.16 | 108.05 | 0.9849 | -511.2 | -97.6 | |
| 9.45 | -16.00 | 28.59 | -16.00 | -18.61 | 216.28 | -81.95 | 107.94 | 0.9871 | 4.3 | 999999 | |
| 0.00 | 4.06 | 0.00 | 10.35 | -16.97 | 218.24 | -79.98 | 106.18 | 0.9816 | -153.0 | -138.7 | |
| 2.21 | 5.21 | 4.91 | 11.61 | -13.31 | 220.13 | -78.10 | 102.36 | 0.9758 | 179.6 | 63.7 | |
| 0.00 | 1.68 | 0.00 | 4.37 | -14.78 | 217.99 | -80.24 | 103.97 | 0.9828 | -283.0 | -254.5 | |
| 0.00 | 6.44 | 0.00 | 19.93 | -15.39 | 216.28 | -81.94 | 104.69 | 0.9876 | -380.0 | -308.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
