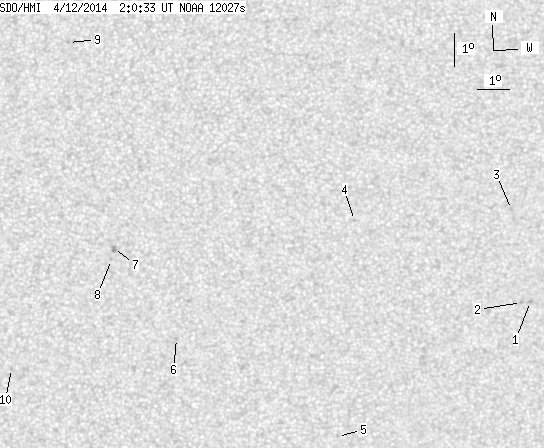

SDO HMI 2014-04-12 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.95 | 0.00 | 7.06 | -14.14 | 302.96 | 5.29 | 202.32 | 0.1890 | -22.4 | -148.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-12 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.78 | -15.02 | 311.53 | 13.85 | 234.98 | 0.2837 | 825.0 | 665.6 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -15.06 | 311.24 | 13.57 | 234.33 | 0.2801 | 815.0 | 620.5 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -12.24 | 310.76 | 13.09 | 242.79 | 0.2500 | 925.0 | 686.5 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -12.66 | 305.86 | 8.19 | 229.32 | 0.1842 | 841.0 | 646.2 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -19.26 | 305.59 | 7.91 | 209.18 | 0.2678 | 568.0 | 425.6 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -16.29 | 300.40 | 2.72 | 194.13 | 0.1877 | -786.0 | -638.4 | |
| 0.00 | 3.80 | 0.00 | 1.90 | -13.56 | 298.42 | 0.75 | 185.40 | 0.1352 | -1014.0 | -815.5 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -13.89 | 298.36 | 0.69 | 184.75 | 0.1409 | -816.0 | -593.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -7.35 | 297.05 | -0.62 | 157.44 | 0.0283 | -801.0 | -574.4 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -17.21 | 295.22 | -2.45 | 168.27 | 0.2020 | -781.0 | -669.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
