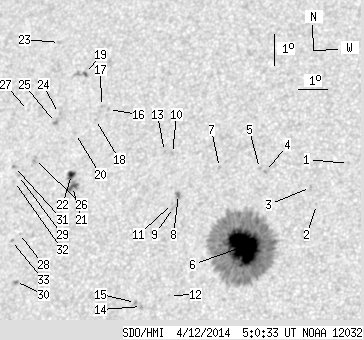

SDO HMI 2014-04-12 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.63 | 436.28 | 38.42 | 244.25 | 11.33 | 274.25 | -21.78 | 51.56 | 0.4657 | -637.7 | -341.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-12 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.63 | 13.46 | 278.16 | -17.87 | 42.49 | 0.4437 | -373.0 | -402.2 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 12.20 | 277.21 | -18.82 | 46.01 | 0.4400 | 470.0 | 400.1 | |
| 0.00 | 1.85 | 0.00 | 1.03 | 12.74 | 276.97 | -19.05 | 45.47 | 0.4485 | 711.0 | 651.1 | |
| 0.00 | 1.32 | 0.00 | 0.74 | 13.31 | 275.45 | -20.57 | 46.75 | 0.4714 | 853.0 | 689.5 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 13.41 | 275.24 | -20.78 | 46.88 | 0.4748 | 827.0 | 633.5 | |
| 60.06 | 377.56 | 33.36 | 209.81 | 10.96 | 274.92 | -21.11 | 51.39 | 0.4543 | -1492.5 | -418.8 | |
| 0.00 | 1.32 | 0.00 | 0.75 | 13.50 | 273.91 | -22.12 | 48.51 | 0.4908 | -755.0 | -623.3 | |
| 0.62 | 3.36 | 0.35 | 1.91 | 12.69 | 272.61 | -23.42 | 51.38 | 0.4982 | -827.1 | -600.4 | |
| 0.00 | 2.83 | 0.00 | 1.61 | 12.29 | 272.48 | -23.54 | 52.19 | 0.4960 | -692.0 | -600.0 | |
| 0.00 | 1.68 | 0.00 | 0.97 | 14.01 | 272.27 | -23.75 | 49.72 | 0.5143 | -750.0 | -504.9 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 12.42 | 272.44 | -23.59 | 52.03 | 0.4977 | -611.0 | -562.8 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 9.53 | 272.58 | -23.45 | 56.81 | 0.4709 | -611.0 | -675.7 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 14.09 | 271.99 | -24.03 | 49.93 | 0.5182 | -638.0 | -546.2 | |
| 0.00 | 1.77 | 0.00 | 1.00 | 9.22 | 271.67 | -24.36 | 58.35 | 0.4802 | -772.0 | -639.8 | |
| 0.00 | 1.68 | 0.00 | 0.95 | 9.36 | 271.45 | -24.57 | 58.34 | 0.4840 | -668.0 | -533.5 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 15.53 | 269.89 | -26.14 | 50.14 | 0.5551 | 743.0 | 587.8 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 15.64 | 269.63 | -26.39 | 50.26 | 0.5589 | 677.0 | 580.1 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 15.23 | 269.48 | -26.55 | 51.01 | 0.5570 | 765.0 | 664.4 | |
| 0.97 | 5.56 | 0.59 | 3.37 | 16.74 | 268.91 | -27.12 | 49.46 | 0.5765 | -753.3 | -630.1 | |
| 0.00 | 1.15 | 0.00 | 0.69 | 14.81 | 268.84 | -27.19 | 52.27 | 0.5607 | 510.0 | 523.8 | |
| 3.09 | 13.51 | 1.82 | 7.98 | 13.12 | 268.95 | -27.08 | 54.69 | 0.5454 | 895.7 | 715.1 | |
| 3.89 | -21.00 | 2.30 | -21.00 | 13.50 | 268.87 | -27.16 | 54.19 | 0.5495 | 902.5 | 999999 | |
| 0.00 | 1.68 | 0.00 | 1.03 | 17.81 | 267.81 | -28.22 | 49.12 | 0.5976 | 770.0 | 530.9 | |
| 0.00 | 0.53 | 0.00 | 0.32 | 15.49 | 268.14 | -27.88 | 51.98 | 0.5742 | 463.0 | 522.3 | |
| 0.00 | 1.85 | 0.00 | 1.12 | 15.20 | 268.08 | -27.95 | 52.45 | 0.5726 | 932.0 | 800.9 | |
| 0.00 | 2.56 | 0.00 | 1.54 | 14.05 | 267.50 | -28.53 | 54.69 | 0.5699 | 813.0 | 689.1 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 15.64 | 267.05 | -28.97 | 52.81 | 0.5877 | 497.0 | 475.3 | |
| 0.00 | 0.62 | 0.00 | 0.37 | 11.72 | 267.26 | -28.77 | 58.44 | 0.5551 | -576.0 | -432.1 | |
| 0.00 | 1.24 | 0.00 | 0.75 | 13.57 | 267.00 | -29.03 | 55.86 | 0.5721 | 766.0 | 600.7 | |
| 0.00 | 2.12 | 0.00 | 1.25 | 10.21 | 267.28 | -28.75 | 60.83 | 0.5442 | 848.0 | 716.8 | |
| 0.00 | 1.68 | 0.00 | 1.02 | 13.86 | 266.82 | -29.21 | 55.59 | 0.5765 | 701.0 | 591.9 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 13.38 | 266.88 | -29.15 | 56.24 | 0.5721 | 515.0 | 422.6 | |
| 0.00 | 1.24 | 0.00 | 0.74 | 11.51 | 267.00 | -29.02 | 58.99 | 0.5568 | -766.0 | -566.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
