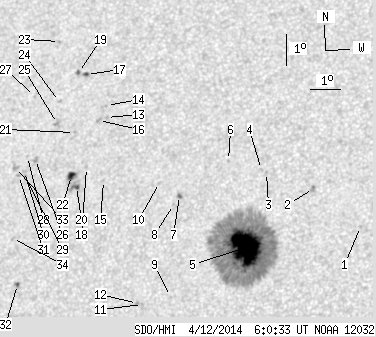

SDO HMI 2014-04-12 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.09 | 443.11 | 41.33 | 247.39 | 11.36 | 274.15 | -21.33 | 50.92 | 0.4605 | -638.1 | -286.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-12 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.62 | 11.48 | 278.62 | -16.86 | 44.11 | 0.4102 | -806.0 | -508.2 | |
| 0.00 | 3.09 | 0.00 | 1.71 | 12.73 | 277.01 | -18.46 | 44.60 | 0.4418 | 849.0 | 638.5 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 13.30 | 275.43 | -20.05 | 46.04 | 0.4653 | 812.0 | 692.6 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 13.40 | 275.26 | -20.22 | 46.12 | 0.4683 | 883.0 | 587.0 | |
| 65.09 | 380.68 | 36.02 | 210.75 | 10.95 | 274.93 | -20.55 | 50.67 | 0.4474 | -1492.5 | -405.3 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 13.73 | 274.14 | -21.34 | 47.14 | 0.4842 | -724.0 | -569.2 | |
| 0.88 | 2.21 | 0.50 | 1.25 | 12.68 | 272.60 | -22.88 | 50.77 | 0.4916 | -810.0 | -650.7 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 12.40 | 272.43 | -23.05 | 51.43 | 0.4911 | -662.0 | -542.2 | |
| 0.00 | 0.44 | 0.00 | 0.25 | 9.51 | 272.56 | -22.92 | 56.24 | 0.4638 | -697.0 | -527.2 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 13.12 | 271.89 | -23.59 | 50.92 | 0.5041 | -598.0 | -475.5 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 9.30 | 271.65 | -23.83 | 57.65 | 0.4739 | -680.0 | -463.2 | |
| 0.00 | 1.68 | 0.00 | 0.94 | 9.34 | 271.48 | -24.00 | 57.77 | 0.4764 | -746.0 | -573.0 | |
| 0.00 | 1.59 | 0.00 | 0.94 | 15.29 | 269.83 | -25.65 | 49.97 | 0.5475 | 853.0 | 660.2 | |
| 0.00 | 0.97 | 0.00 | 0.58 | 15.68 | 269.77 | -25.70 | 49.47 | 0.5515 | 643.0 | 525.2 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 13.27 | 269.97 | -25.51 | 52.84 | 0.5280 | 629.0 | 495.5 | |
| 0.00 | 2.56 | 0.00 | 1.52 | 15.21 | 269.56 | -25.92 | 50.38 | 0.5497 | 766.0 | 594.1 | |
| 1.15 | 2.12 | 0.69 | 1.28 | 16.72 | 268.93 | -26.55 | 48.91 | 0.5702 | -736.6 | -586.4 | |
| 0.00 | 1.59 | 0.00 | 0.93 | 13.72 | 269.33 | -26.15 | 52.84 | 0.5393 | 612.0 | 438.8 | |
| 0.79 | 1.85 | 0.48 | 1.12 | 16.80 | 268.63 | -26.84 | 49.10 | 0.5740 | -767.8 | -655.8 | |
| 1.24 | 7.07 | 0.73 | 4.15 | 13.12 | 269.06 | -26.42 | 54.03 | 0.5376 | 992.9 | 790.7 | |
| 0.00 | 1.24 | 0.00 | 0.74 | 14.86 | 268.77 | -26.71 | 51.71 | 0.5556 | 742.0 | 590.8 | |
| 4.06 | 6.45 | 2.39 | 3.80 | 13.48 | 268.84 | -26.64 | 53.70 | 0.5431 | 870.2 | 611.9 | |
| 0.00 | 1.32 | 0.00 | 0.81 | 17.86 | 267.79 | -27.69 | 48.54 | 0.5923 | 806.0 | 633.9 | |
| 0.00 | 1.32 | 0.00 | 0.80 | 15.89 | 268.10 | -27.38 | 50.92 | 0.5719 | 671.0 | 520.7 | |
| 0.00 | 3.97 | 0.00 | 2.38 | 15.18 | 268.13 | -27.34 | 51.90 | 0.5655 | 935.0 | 750.6 | |
| 0.00 | 2.65 | 0.00 | 1.59 | 14.06 | 267.51 | -27.96 | 54.14 | 0.5634 | 839.0 | 709.3 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 16.10 | 267.18 | -28.29 | 51.53 | 0.5838 | 576.0 | 490.0 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 14.17 | 267.22 | -28.26 | 54.26 | 0.5677 | 463.0 | 398.1 | |
| 0.00 | 1.15 | 0.00 | 0.69 | 13.53 | 267.23 | -28.25 | 55.20 | 0.5625 | 668.0 | 567.3 | |
| 0.00 | 1.50 | 0.00 | 0.90 | 13.69 | 267.17 | -28.30 | 55.01 | 0.5645 | 722.0 | 616.3 | |
| 0.00 | 1.15 | 0.00 | 0.69 | 13.58 | 266.98 | -28.50 | 55.37 | 0.5659 | 851.0 | 710.2 | |
| 0.88 | 2.03 | 0.52 | 1.19 | 10.13 | 267.33 | -28.15 | 60.46 | 0.5358 | 824.3 | 695.8 | |
| 0.00 | 3.18 | 0.00 | 1.91 | 13.84 | 266.84 | -28.64 | 55.11 | 0.5696 | 668.0 | 546.5 | |
| 0.00 | 1.59 | 0.00 | 0.94 | 11.58 | 267.01 | -28.47 | 58.40 | 0.5504 | -741.0 | -563.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
