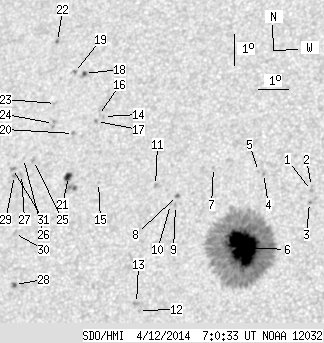

SDO HMI 2014-04-12 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.19 | 441.70 | 39.51 | 245.62 | 11.35 | 274.19 | -20.75 | 50.17 | 0.4534 | -656.0 | -302.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-12 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.68 | 12.69 | 277.02 | -17.91 | 43.81 | 0.4352 | 866.0 | 655.2 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 12.81 | 277.01 | -17.92 | 43.62 | 0.4367 | 659.0 | 542.8 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 12.31 | 276.98 | -17.95 | 44.49 | 0.4314 | 889.0 | 672.0 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 13.28 | 275.41 | -19.52 | 45.31 | 0.4593 | 839.0 | 735.1 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 13.35 | 275.24 | -19.69 | 45.44 | 0.4619 | 849.0 | 634.9 | |
| 64.04 | 382.10 | 35.31 | 210.82 | 10.97 | 274.94 | -20.00 | 49.88 | 0.4408 | -1478.5 | -407.9 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 13.54 | 273.74 | -21.19 | 47.25 | 0.4806 | -674.0 | -560.9 | |
| 0.53 | 1.77 | 0.30 | 1.00 | 12.69 | 272.62 | -22.31 | 50.05 | 0.4851 | -895.8 | -791.6 | |
| 0.00 | 1.32 | 0.00 | 0.75 | 12.38 | 272.58 | -22.35 | 50.61 | 0.4825 | -720.0 | -607.3 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 12.42 | 272.41 | -22.52 | 50.76 | 0.4849 | -586.0 | -443.1 | |
| 0.00 | 1.68 | 0.00 | 0.96 | 13.04 | 271.85 | -23.08 | 50.44 | 0.4974 | -580.0 | -503.2 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 9.13 | 271.61 | -23.32 | 57.40 | 0.4658 | -770.0 | -611.9 | |
| 0.00 | 2.38 | 0.00 | 1.34 | 9.35 | 271.53 | -23.40 | 57.09 | 0.4687 | -816.0 | -674.0 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 15.34 | 269.83 | -25.11 | 49.31 | 0.5417 | 745.0 | 646.1 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 13.23 | 269.90 | -25.03 | 52.40 | 0.5218 | 587.0 | 440.2 | |
| 0.00 | 0.53 | 0.00 | 0.31 | 15.38 | 269.65 | -25.28 | 49.45 | 0.5441 | 405.0 | 516.8 | |
| 0.00 | 1.68 | 0.00 | 0.99 | 15.19 | 269.60 | -25.33 | 49.78 | 0.5428 | 863.0 | 708.8 | |
| 1.06 | 2.91 | 0.63 | 1.75 | 16.77 | 268.97 | -25.96 | 48.23 | 0.5642 | -766.3 | -538.1 | |
| 0.00 | 2.21 | 0.00 | 1.33 | 16.82 | 268.61 | -26.32 | 48.54 | 0.5685 | -842.0 | -597.5 | |
| 0.00 | 1.41 | 0.00 | 0.84 | 14.84 | 268.85 | -26.08 | 51.10 | 0.5482 | 794.0 | 671.2 | |
| 4.06 | 14.31 | 2.38 | 8.37 | 13.47 | 268.85 | -26.08 | 53.16 | 0.5364 | 877.3 | 735.0 | |
| 0.44 | 1.24 | 0.27 | 0.75 | 17.87 | 267.85 | -27.08 | 47.92 | 0.5860 | 737.4 | 624.2 | |
| 0.00 | 1.85 | 0.00 | 1.11 | 15.84 | 268.09 | -26.84 | 50.45 | 0.5655 | 347.0 | 450.0 | |
| 0.00 | 3.27 | 0.00 | 1.95 | 15.19 | 268.11 | -26.82 | 51.35 | 0.5597 | 841.0 | 729.3 | |
| 0.00 | 2.12 | 0.00 | 1.26 | 14.04 | 267.56 | -27.37 | 53.60 | 0.5562 | 883.0 | 771.0 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 14.12 | 267.20 | -27.73 | 53.83 | 0.5611 | 634.0 | 475.6 | |
| 0.00 | 2.12 | 0.00 | 1.26 | 13.61 | 267.20 | -27.73 | 54.60 | 0.5570 | 701.0 | 649.6 | |
| 1.06 | 2.38 | 0.62 | 1.39 | 10.14 | 267.34 | -27.59 | 59.96 | 0.5288 | 837.1 | 624.7 | |
| 0.00 | 1.41 | 0.00 | 0.84 | 13.59 | 266.96 | -27.97 | 54.86 | 0.5597 | 748.0 | 703.4 | |
| 0.00 | 2.12 | 0.00 | 1.25 | 11.74 | 267.18 | -27.76 | 57.50 | 0.5427 | -658.0 | -411.2 | |
| 0.00 | 2.12 | 0.00 | 1.27 | 13.82 | 266.86 | -28.07 | 54.61 | 0.5627 | 677.0 | 605.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
