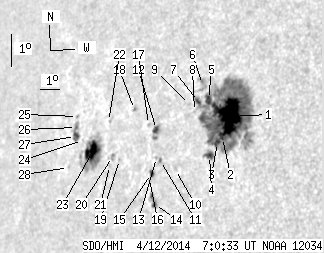

SDO HMI 2014-04-12 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.87 | 405.40 | 77.27 | 330.97 | 4.47 | 243.26 | -51.68 | 79.79 | 0.7960 | -244.0 | -128.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-12 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.73 | 286.44 | 41.38 | 225.30 | 4.60 | 245.10 | -49.84 | 79.21 | 0.7777 | -992.0 | -321.7 | |
| 0.26 | -1.00 | 0.21 | -1.00 | 3.98 | 244.82 | -50.11 | 80.06 | 0.7794 | -669.0 | 999999 | |
| 3.09 | -1.00 | 2.44 | -1.00 | 3.85 | 244.59 | -50.34 | 80.29 | 0.7815 | -477.1 | 999999 | |
| 3.62 | 7.24 | 2.88 | 5.76 | 3.48 | 244.24 | -50.69 | 80.83 | 0.7845 | -416.8 | -66.3 | |
| 4.77 | -1.00 | 3.84 | -1.00 | 5.21 | 244.03 | -50.90 | 78.73 | 0.7903 | -384.9 | 999999 | |
| 0.00 | 9.19 | 0.00 | 7.47 | 5.69 | 243.69 | -51.24 | 78.21 | 0.7949 | -220.0 | -157.1 | |
| 2.30 | -1.00 | 1.87 | -1.00 | 5.19 | 243.55 | -51.38 | 78.87 | 0.7952 | -259.9 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.72 | 4.89 | 243.39 | -51.54 | 79.28 | 0.7963 | 379.0 | 301.6 | |
| 0.00 | 1.41 | 0.00 | 1.16 | 5.13 | 243.12 | -51.81 | 79.05 | 0.7996 | 387.0 | 331.4 | |
| 0.00 | 1.77 | 0.00 | 1.45 | 3.19 | 242.61 | -52.32 | 81.56 | 0.8011 | 238.0 | 187.6 | |
| 0.53 | 1.94 | 0.45 | 1.63 | 3.53 | 241.83 | -53.10 | 81.31 | 0.8096 | 664.8 | 554.8 | |
| 2.83 | 9.01 | 2.40 | 7.64 | 4.50 | 241.54 | -53.39 | 80.19 | 0.8143 | 754.5 | 557.7 | |
| 0.00 | 1.24 | 0.00 | 1.04 | 3.64 | 241.62 | -53.31 | 81.22 | 0.8120 | 626.0 | 550.5 | |
| 1.32 | 6.80 | 1.11 | 5.72 | 2.21 | 241.62 | -53.31 | 82.96 | 0.8096 | 761.9 | 602.8 | |
| 1.94 | 3.53 | 1.64 | 2.99 | 3.17 | 241.40 | -53.53 | 81.83 | 0.8133 | 525.8 | 398.5 | |
| 0.00 | 1.15 | 0.00 | 0.97 | 3.02 | 241.31 | -53.62 | 82.03 | 0.8140 | 423.0 | 520.6 | |
| 0.00 | 1.41 | 0.00 | 1.21 | 4.69 | 241.11 | -53.82 | 80.06 | 0.8189 | 524.0 | 346.4 | |
| 0.00 | 1.68 | 0.00 | 1.47 | 5.21 | 240.32 | -54.61 | 79.61 | 0.8276 | 762.0 | 627.4 | |
| 0.00 | 0.79 | 0.00 | 0.70 | 3.74 | 239.69 | -55.24 | 81.49 | 0.8311 | 511.0 | 437.8 | |
| 0.00 | 2.21 | 0.00 | 1.98 | 3.86 | 239.30 | -55.63 | 81.42 | 0.8350 | 659.0 | 575.5 | |
| 0.00 | 1.32 | 0.00 | 1.19 | 3.60 | 239.17 | -55.76 | 81.76 | 0.8358 | 409.0 | 354.1 | |
| 0.00 | 0.53 | 0.00 | 0.48 | 4.96 | 238.96 | -55.97 | 80.20 | 0.8400 | 510.0 | 559.3 | |
| 16.16 | 54.41 | 14.93 | 50.24 | 4.11 | 238.19 | -56.74 | 81.35 | 0.8458 | 718.1 | 303.8 | |
| 0.00 | 0.44 | 0.00 | 0.42 | 4.50 | 237.58 | -57.35 | 81.02 | 0.8519 | 363.0 | 342.4 | |
| 0.00 | 1.06 | 0.00 | 1.01 | 5.27 | 237.20 | -57.73 | 80.21 | 0.8565 | 149.0 | 97.4 | |
| 0.79 | 10.33 | 0.76 | 9.83 | 4.93 | 237.19 | -57.74 | 80.60 | 0.8561 | 379.6 | 294.0 | |
| 3.53 | -26.00 | 3.36 | -26.00 | 4.66 | 237.17 | -57.76 | 80.92 | 0.8558 | 493.5 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.59 | 3.74 | 236.87 | -58.06 | 82.03 | 0.8571 | 318.0 | 304.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
