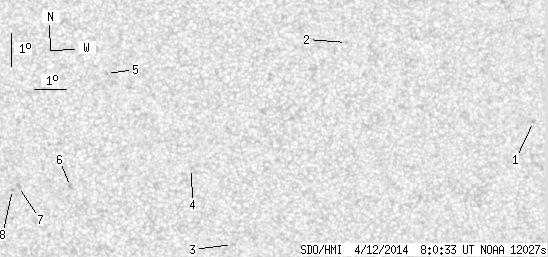

SDO HMI 2014-04-12 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.27 | 0.00 | 6.23 | -16.37 | 299.62 | 5.23 | 203.22 | 0.2170 | -460.2 | -463.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-12 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.51 | -14.92 | 311.98 | 17.60 | 240.89 | 0.3358 | 770.0 | 654.1 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -12.66 | 305.86 | 11.47 | 238.03 | 0.2298 | 795.0 | 563.9 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -18.88 | 302.54 | 8.15 | 210.59 | 0.2648 | -710.0 | -508.9 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -16.56 | 301.14 | 6.75 | 211.07 | 0.2194 | -762.0 | -496.1 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -13.69 | 298.41 | 4.03 | 206.43 | 0.1539 | -1039.0 | -755.0 | |
| 0.00 | 2.74 | 0.00 | 1.39 | -17.14 | 297.34 | 2.95 | 194.08 | 0.2034 | -923.0 | -696.5 | |
| 0.00 | 2.47 | 0.00 | 1.25 | -17.15 | 295.70 | 1.32 | 186.39 | 0.1985 | -964.0 | -781.4 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -17.24 | 295.51 | 1.13 | 185.43 | 0.1998 | -849.0 | -620.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
