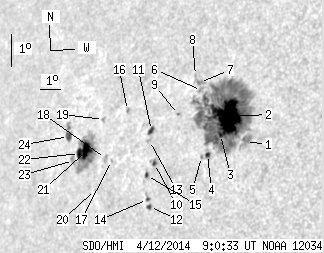

SDO HMI 2014-04-12 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.52 | 407.25 | 65.56 | 323.59 | 4.44 | 243.56 | -50.28 | 79.49 | 0.7812 | -267.0 | -143.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-12 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.22 | 0.00 | 8.41 | 3.78 | 246.05 | -47.79 | 79.76 | 0.7533 | -836.0 | -644.6 | |
| 50.96 | 288.37 | 39.00 | 221.67 | 4.60 | 245.21 | -48.63 | 78.91 | 0.7645 | -985.9 | -286.4 | |
| 1.50 | -2.00 | 1.15 | -2.00 | 4.08 | 244.89 | -48.95 | 79.66 | 0.7669 | -627.3 | 999999 | |
| 1.68 | 4.77 | 1.30 | 3.70 | 3.52 | 244.33 | -49.51 | 80.52 | 0.7719 | -495.7 | -227.8 | |
| 0.00 | 1.41 | 0.00 | 1.10 | 3.48 | 244.05 | -49.79 | 80.64 | 0.7748 | -218.0 | -164.1 | |
| 0.00 | 2.91 | 0.00 | 2.30 | 5.51 | 243.86 | -49.97 | 78.12 | 0.7812 | -473.0 | -400.6 | |
| 0.00 | 5.30 | 0.00 | 4.20 | 5.76 | 243.74 | -50.10 | 77.84 | 0.7831 | 363.0 | 82.8 | |
| 0.00 | 0.97 | 0.00 | 0.77 | 5.99 | 243.52 | -50.32 | 77.61 | 0.7859 | -233.0 | -234.5 | |
| 0.00 | 1.06 | 0.00 | 0.85 | 4.85 | 242.84 | -51.00 | 79.20 | 0.7906 | 550.0 | 563.1 | |
| 1.41 | 2.74 | 1.16 | 2.24 | 3.45 | 241.79 | -52.04 | 81.19 | 0.7987 | 742.8 | 609.4 | |
| 2.56 | 4.15 | 2.12 | 3.43 | 4.47 | 241.56 | -52.28 | 79.98 | 0.8031 | 607.4 | 467.3 | |
| 1.24 | 2.47 | 1.01 | 2.02 | 2.15 | 241.63 | -52.21 | 82.82 | 0.7982 | 678.4 | 567.3 | |
| 0.00 | 2.12 | 0.00 | 1.75 | 4.17 | 241.49 | -52.35 | 80.36 | 0.8032 | 739.0 | 570.0 | |
| 0.88 | 2.74 | 0.72 | 2.25 | 2.37 | 241.52 | -52.32 | 82.57 | 0.7997 | 653.5 | 606.8 | |
| 1.15 | 2.12 | 0.95 | 1.75 | 3.11 | 241.42 | -52.41 | 81.68 | 0.8019 | 602.1 | 524.1 | |
| 0.00 | 1.77 | 0.00 | 1.51 | 5.19 | 240.27 | -53.57 | 79.40 | 0.8174 | 739.0 | 609.0 | |
| 0.00 | 0.97 | 0.00 | 0.84 | 3.72 | 239.60 | -54.24 | 81.32 | 0.8213 | 568.0 | 511.3 | |
| 0.00 | 3.27 | 0.00 | 2.85 | 3.81 | 239.28 | -54.56 | 81.28 | 0.8246 | 646.0 | 497.1 | |
| 0.00 | 2.30 | 0.00 | 2.02 | 5.02 | 239.04 | -54.79 | 79.89 | 0.8290 | 639.0 | 541.7 | |
| 0.00 | 0.88 | 0.00 | 0.77 | 2.90 | 238.83 | -55.01 | 82.45 | 0.8275 | 439.0 | 366.9 | |
| 12.81 | 52.90 | 11.47 | 47.40 | 4.14 | 238.24 | -55.60 | 81.10 | 0.8351 | 861.4 | 379.9 | |
| 3.97 | -21.00 | 3.59 | -21.00 | 4.08 | 237.87 | -55.97 | 81.24 | 0.8385 | 270.5 | 999999 | |
| 0.00 | 4.33 | 0.00 | 3.94 | 3.89 | 237.56 | -56.28 | 81.52 | 0.8411 | -293.0 | -149.4 | |
| 3.36 | 8.48 | 3.09 | 7.82 | 4.66 | 237.20 | -56.64 | 80.70 | 0.8456 | 480.8 | 311.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
