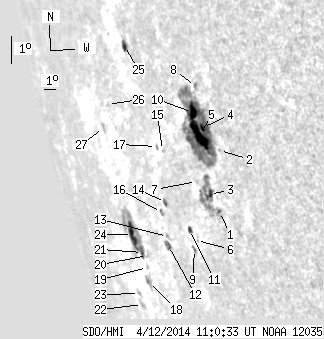

SDO HMI 2014-04-12 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.31 | 274.53 | 90.20 | 402.30 | -17.39 | 221.74 | -71.00 | 106.44 | 0.9397 | 164.5 | 76.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-12 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.71 | 36.29 | 0.90 | 47.22 | -18.75 | 224.96 | -67.78 | 107.93 | 0.9230 | -543.8 | 247.0 | |
| 0.00 | 0.97 | 0.00 | 1.17 | -16.96 | 226.34 | -66.40 | 106.01 | 0.9136 | 502.0 | 484.0 | |
| 4.33 | -1.00 | 5.59 | -1.00 | -18.18 | 224.58 | -68.16 | 107.30 | 0.9253 | -181.8 | 999999 | |
| 2.21 | 147.03 | 2.75 | 185.90 | -16.17 | 225.53 | -67.21 | 105.13 | 0.9189 | 883.0 | 164.9 | |
| 21.19 | -4.00 | 26.79 | -4.00 | -16.38 | 225.13 | -67.61 | 105.36 | 0.9216 | 497.3 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.76 | -19.42 | 222.26 | -70.48 | 108.59 | 0.9393 | 286.0 | 348.0 | |
| 0.00 | 0.97 | 0.00 | 1.29 | -17.71 | 223.84 | -68.90 | 106.77 | 0.9298 | 364.0 | 338.2 | |
| 0.00 | 2.38 | 0.00 | 2.93 | -14.92 | 225.80 | -66.94 | 103.77 | 0.9171 | 150.0 | 122.1 | |
| 0.00 | 2.65 | 0.00 | 3.86 | -19.67 | 221.82 | -70.93 | 108.84 | 0.9418 | 272.0 | 266.1 | |
| 7.59 | -4.00 | 9.60 | -4.00 | -15.66 | 225.06 | -67.68 | 104.57 | 0.9220 | 566.6 | 999999 | |
| 1.77 | 2.91 | 2.55 | 4.20 | -19.04 | 221.96 | -70.78 | 108.18 | 0.9410 | 209.9 | 191.8 | |
| 2.56 | 4.77 | 4.18 | 7.81 | -19.32 | 219.46 | -73.28 | 108.45 | 0.9541 | 92.9 | -79.8 | |
| 0.00 | 1.15 | 0.00 | 1.85 | -19.05 | 219.67 | -73.08 | 108.17 | 0.9531 | 347.0 | 307.5 | |
| 1.41 | 2.91 | 2.19 | 4.52 | -18.06 | 220.53 | -72.21 | 107.13 | 0.9487 | 268.8 | 179.3 | |
| 0.00 | 0.53 | 0.00 | 0.78 | -16.53 | 221.68 | -71.06 | 105.51 | 0.9425 | 404.0 | 385.0 | |
| 0.00 | 2.21 | 0.00 | 3.53 | -18.31 | 219.84 | -72.90 | 107.39 | 0.9523 | 345.0 | 215.4 | |
| 0.00 | 1.59 | 0.00 | 2.37 | -16.36 | 221.24 | -71.50 | 105.33 | 0.9450 | 53.0 | 98.9 | |
| 0.00 | 5.21 | 0.00 | 10.46 | -20.14 | 215.79 | -76.95 | 109.35 | 0.9704 | -530.0 | -407.7 | |
| 0.00 | 1.50 | 0.00 | 2.92 | -19.71 | 216.32 | -76.42 | 108.90 | 0.9683 | -509.0 | -452.4 | |
| 0.00 | 1.24 | 0.00 | 2.34 | -19.38 | 216.82 | -75.93 | 108.54 | 0.9663 | -462.0 | -439.6 | |
| 3.97 | 45.48 | 7.78 | 91.11 | -19.24 | 216.34 | -76.40 | 108.40 | 0.9683 | -409.8 | -109.2 | |
| 0.00 | 3.53 | 0.00 | 8.09 | -20.67 | 213.93 | -78.82 | 109.93 | 0.9773 | 123.0 | 71.7 | |
| 0.00 | 1.59 | 0.00 | 3.60 | -20.33 | 214.07 | -78.67 | 109.58 | 0.9768 | -181.0 | -156.8 | |
| 11.39 | -21.00 | 22.95 | -21.00 | -18.62 | 215.85 | -76.89 | 107.77 | 0.9703 | -88.6 | 999999 | |
| 3.18 | 5.39 | 4.92 | 8.34 | -13.17 | 220.61 | -72.13 | 101.96 | 0.9487 | 207.8 | 113.8 | |
| 0.00 | 0.79 | 0.00 | 1.47 | -14.68 | 217.38 | -75.36 | 103.66 | 0.9644 | -290.0 | -305.4 | |
| 0.00 | 2.91 | 0.00 | 5.78 | -15.28 | 216.20 | -76.54 | 104.32 | 0.9694 | -404.0 | -358.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
