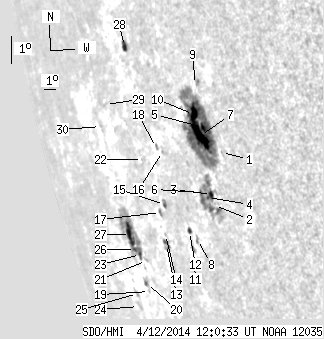

SDO HMI 2014-04-12 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.99 | 292.88 | 86.37 | 416.03 | -17.35 | 221.86 | -70.34 | 106.40 | 0.9360 | 173.5 | 86.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-12 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.73 | -17.02 | 226.39 | -65.80 | 106.08 | 0.9095 | 546.0 | 501.7 | |
| 0.00 | 0.62 | 0.00 | 0.78 | -18.52 | 224.69 | -67.50 | 107.69 | 0.9212 | -68.0 | 15.4 | |
| 2.74 | 46.80 | 3.45 | 59.48 | -18.18 | 224.72 | -67.47 | 107.32 | 0.9209 | -243.0 | 163.9 | |
| 0.26 | -3.00 | 0.34 | -3.00 | -18.24 | 224.33 | -67.86 | 107.37 | 0.9234 | -57.7 | 999999 | |
| 2.65 | 153.11 | 3.23 | 189.26 | -16.16 | 225.56 | -66.63 | 105.13 | 0.9151 | 842.2 | 181.0 | |
| 1.06 | -3.00 | 1.37 | -3.00 | -18.05 | 223.98 | -68.22 | 107.16 | 0.9256 | 441.0 | 999999 | |
| 17.75 | -5.00 | 21.93 | -5.00 | -16.37 | 225.17 | -67.02 | 105.36 | 0.9177 | 529.9 | 999999 | |
| 0.00 | 2.65 | 0.00 | 3.67 | -19.39 | 222.42 | -69.78 | 108.57 | 0.9353 | 482.0 | 377.7 | |
| 0.00 | 0.79 | 0.00 | 0.96 | -14.84 | 225.78 | -66.41 | 103.69 | 0.9135 | 326.0 | 265.7 | |
| 9.62 | -5.00 | 11.93 | -5.00 | -15.71 | 225.06 | -67.13 | 104.63 | 0.9184 | 535.5 | 999999 | |
| 0.62 | 2.47 | 0.88 | 3.52 | -19.65 | 221.78 | -70.41 | 108.83 | 0.9390 | 256.3 | 237.4 | |
| 1.59 | 2.21 | 2.24 | 3.11 | -19.09 | 221.95 | -70.24 | 108.24 | 0.9379 | 253.6 | 174.6 | |
| 2.30 | 4.68 | 3.64 | 7.43 | -19.27 | 219.43 | -72.77 | 108.40 | 0.9516 | 103.6 | 54.1 | |
| 0.00 | 0.79 | 0.00 | 1.25 | -18.97 | 219.65 | -72.54 | 108.09 | 0.9504 | 361.0 | 395.9 | |
| 1.32 | 3.53 | 2.00 | 5.33 | -18.10 | 220.47 | -71.73 | 107.17 | 0.9461 | 273.9 | 242.9 | |
| 0.00 | 0.97 | 0.00 | 1.39 | -16.55 | 221.71 | -70.49 | 105.53 | 0.9392 | 382.0 | 360.9 | |
| 0.00 | 2.30 | 0.00 | 3.58 | -18.29 | 219.85 | -72.34 | 107.38 | 0.9494 | 290.0 | 205.7 | |
| 0.00 | 2.12 | 0.00 | 3.08 | -16.38 | 221.27 | -70.92 | 105.35 | 0.9417 | 153.0 | 124.8 | |
| 0.00 | 0.26 | 0.00 | 0.52 | -20.42 | 215.81 | -76.39 | 109.62 | 0.9681 | -328.0 | -339.0 | |
| 1.06 | 3.18 | 2.06 | 6.19 | -20.16 | 215.79 | -76.40 | 109.36 | 0.9682 | -419.1 | -389.4 | |
| 0.00 | 1.06 | 0.00 | 1.95 | -19.52 | 216.74 | -75.46 | 108.68 | 0.9643 | -504.0 | -510.1 | |
| 0.00 | 0.26 | 0.00 | 0.42 | -16.61 | 219.65 | -72.55 | 105.60 | 0.9505 | -200.0 | -213.7 | |
| 0.97 | 53.42 | 1.84 | 103.71 | -19.28 | 216.28 | -75.91 | 108.44 | 0.9662 | -297.4 | -119.2 | |
| 0.00 | 0.97 | 0.00 | 2.17 | -20.69 | 213.67 | -78.52 | 109.95 | 0.9763 | 95.0 | 123.3 | |
| 0.00 | 2.38 | 0.00 | 5.17 | -20.32 | 214.19 | -78.00 | 109.56 | 0.9744 | -301.0 | -191.8 | |
| 1.59 | -23.00 | 3.09 | -23.00 | -19.08 | 215.89 | -76.31 | 108.24 | 0.9679 | -345.4 | 999999 | |
| 11.66 | -23.00 | 22.67 | -23.00 | -18.61 | 215.89 | -76.31 | 107.75 | 0.9680 | -147.0 | 999999 | |
| 3.80 | 5.39 | 5.70 | 8.08 | -13.19 | 220.66 | -71.54 | 101.97 | 0.9455 | 177.9 | 131.9 | |
| 0.00 | 1.24 | 0.00 | 2.21 | -14.67 | 217.35 | -74.85 | 103.62 | 0.9620 | -375.0 | -294.0 | |
| 0.00 | 1.06 | 0.00 | 2.04 | -15.23 | 216.12 | -76.07 | 104.25 | 0.9674 | -441.0 | -382.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
