SDO HMI 2014-04-12 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.60 | 437.55 | 70.41 | 330.58 | 4.44 | 243.76 | -47.88 | 78.89 | 0.7551 | -256.8 | -117.9 | |
|
previous
or next observation for the same group /

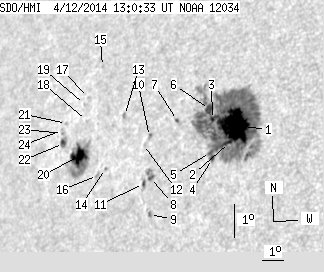

back to the solar disc SDO HMI 2014-04-12 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.53 | 345.82 | 42.76 | 253.83 | 4.52 | 245.41 | -46.23 | 78.37 | 0.7373 | -920.1 | -266.7 | |
| 1.32 | -1.00 | 0.97 | -1.00 | 4.02 | 245.23 | -46.41 | 79.09 | 0.7382 | -636.5 | 999999 | |
| 1.41 | -1.00 | 1.05 | -1.00 | 4.78 | 244.42 | -47.23 | 78.31 | 0.7493 | -398.8 | 999999 | |
| 1.77 | -1.00 | 1.31 | -1.00 | 3.58 | 244.51 | -47.14 | 79.86 | 0.7455 | -452.8 | 999999 | |
| 1.41 | -1.00 | 1.05 | -1.00 | 3.77 | 244.41 | -47.24 | 79.63 | 0.7470 | 311.5 | 999999 | |
| 5.21 | -1.00 | 3.90 | -1.00 | 5.10 | 244.25 | -47.39 | 77.94 | 0.7519 | -453.6 | 999999 | |
| 0.62 | 2.38 | 0.48 | 1.83 | 4.87 | 242.82 | -48.82 | 78.63 | 0.7673 | 628.7 | 432.2 | |
| 1.32 | 7.68 | 1.04 | 6.01 | 3.22 | 241.70 | -49.95 | 81.01 | 0.7760 | 841.1 | 648.9 | |
| 0.00 | 1.94 | 0.00 | 1.51 | 2.10 | 241.71 | -49.93 | 82.44 | 0.7737 | 754.0 | 667.9 | |
| 0.00 | 2.47 | 0.00 | 1.95 | 4.48 | 241.55 | -50.09 | 79.45 | 0.7802 | 683.0 | 511.2 | |
| 0.97 | 3.27 | 0.76 | 2.57 | 3.07 | 241.38 | -50.27 | 81.28 | 0.7792 | 532.7 | 478.9 | |
| 0.00 | 0.79 | 0.00 | 0.63 | 4.26 | 241.29 | -50.36 | 79.79 | 0.7825 | 544.0 | 555.1 | |
| 0.00 | 2.21 | 0.00 | 1.80 | 5.23 | 240.28 | -51.37 | 78.84 | 0.7952 | 642.0 | 500.8 | |
| 0.00 | 1.06 | 0.00 | 0.87 | 3.68 | 239.50 | -52.15 | 80.94 | 0.8002 | 599.0 | 488.8 | |
| 0.00 | 1.15 | 0.00 | 0.97 | 6.84 | 238.97 | -52.67 | 77.21 | 0.8118 | 378.0 | 241.3 | |
| 0.00 | 2.38 | 0.00 | 1.98 | 3.49 | 239.12 | -52.53 | 81.24 | 0.8038 | 571.0 | 460.9 | |
| 0.00 | 1.15 | 0.00 | 0.98 | 5.93 | 238.40 | -53.25 | 78.44 | 0.8156 | 510.0 | 453.9 | |
| 0.00 | 0.71 | 0.00 | 0.60 | 5.23 | 238.39 | -53.26 | 79.29 | 0.8143 | 599.0 | 484.5 | |
| 0.00 | 0.26 | 0.00 | 0.23 | 5.73 | 238.22 | -53.42 | 78.72 | 0.8170 | 509.0 | 501.0 | |
| 17.57 | 54.39 | 14.94 | 46.20 | 4.16 | 238.10 | -53.54 | 80.65 | 0.8152 | 715.7 | 348.5 | |
| 0.00 | 1.15 | 0.00 | 1.00 | 5.22 | 237.36 | -54.28 | 79.53 | 0.8244 | 364.0 | 310.8 | |
| 2.47 | 6.45 | 2.15 | 5.61 | 4.62 | 237.28 | -54.37 | 80.27 | 0.8241 | 506.2 | 392.7 | |
| 0.00 | 1.32 | 0.00 | 1.16 | 4.93 | 237.19 | -54.46 | 79.92 | 0.8255 | 402.0 | 316.3 | |
| 0.00 | 0.97 | 0.00 | 0.85 | 5.03 | 237.13 | -54.52 | 79.82 | 0.8263 | 195.0 | 161.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
