SDO HMI 2014-04-12 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.74 | 0.00 | 7.31 | -20.54 | 324.29 | 34.30 | 241.45 | 0.5999 | 26.2 | 172.6 | |
|
previous
or next observation for the same group /

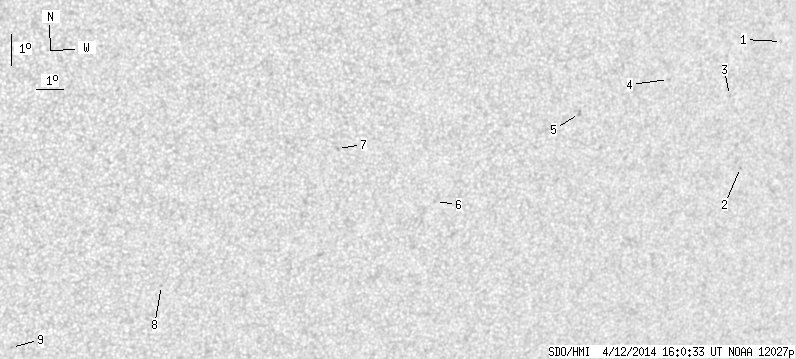

back to the solar disc SDO HMI 2014-04-12 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.60 | -16.94 | 332.72 | 42.73 | 251.37 | 0.6873 | 542.0 | 462.8 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -20.90 | 332.19 | 42.20 | 245.58 | 0.6915 | 454.0 | 405.5 | |
| 0.00 | 1.59 | 0.00 | 1.06 | -18.73 | 331.03 | 41.03 | 248.32 | 0.6714 | 561.0 | 500.5 | |
| 0.00 | 1.32 | 0.00 | 0.85 | -18.39 | 328.41 | 38.42 | 247.96 | 0.6384 | 567.0 | 370.9 | |
| 0.00 | 2.65 | 0.00 | 1.64 | -19.63 | 325.19 | 35.20 | 244.71 | 0.6026 | 824.0 | 684.9 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -22.64 | 320.40 | 30.41 | 237.08 | 0.5587 | -641.0 | -483.1 | |
| 0.00 | 1.68 | 0.00 | 0.96 | -21.15 | 316.47 | 26.47 | 236.56 | 0.5002 | -735.0 | -565.6 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -25.69 | 311.02 | 21.03 | 223.04 | 0.4757 | -697.0 | -600.2 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -27.84 | 306.05 | 16.06 | 212.86 | 0.4527 | -639.0 | -533.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
