SDO HMI 2014-04-12 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.94 | 0.00 | 7.35 | -11.74 | 306.08 | 16.08 | 241.11 | 0.3272 | 83.8 | -32.9 | |
|
previous
or next observation for the same group /

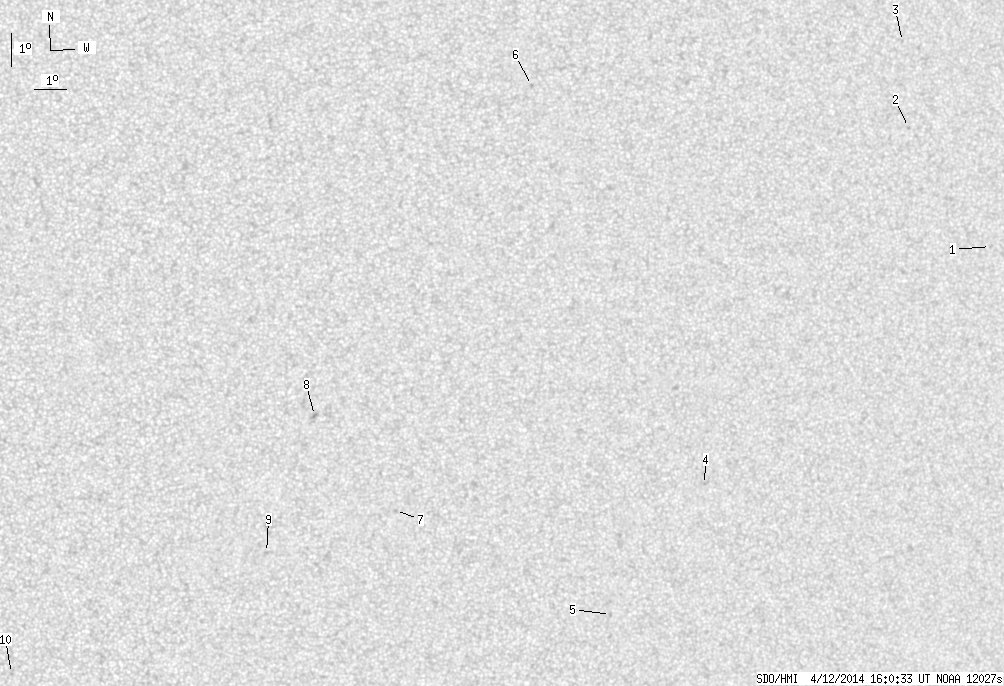

back to the solar disc SDO HMI 2014-04-12 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.68 | 0.00 | 0.96 | -7.26 | 320.29 | 30.30 | 265.52 | 0.5040 | 619.0 | 477.2 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -3.82 | 317.29 | 27.29 | 272.91 | 0.4600 | 547.0 | 513.1 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -1.25 | 317.03 | 27.03 | 278.56 | 0.4614 | 758.0 | 573.6 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -14.84 | 311.24 | 21.24 | 244.94 | 0.3883 | 744.0 | 574.3 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -18.92 | 308.54 | 18.54 | 232.38 | 0.3815 | 772.0 | 661.5 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -2.99 | 305.07 | 15.08 | 279.94 | 0.2649 | 865.0 | 664.5 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -15.90 | 301.28 | 11.28 | 226.72 | 0.2596 | -833.0 | -640.3 | |
| 0.00 | 2.74 | 0.00 | 1.38 | -13.05 | 298.60 | 8.60 | 228.86 | 0.1944 | -952.0 | -822.6 | |
| 0.00 | 1.85 | 0.00 | 0.94 | -17.24 | 297.24 | 7.25 | 211.18 | 0.2338 | -907.0 | -671.4 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -21.01 | 289.18 | -0.81 | 177.11 | 0.2639 | -775.0 | -601.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
