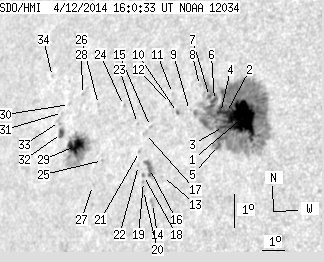

SDO HMI 2014-04-12 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.90 | 478.76 | 64.65 | 349.40 | 4.37 | 243.90 | -46.09 | 78.48 | 0.7344 | -198.3 | -147.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-12 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.55 | 373.80 | 38.54 | 265.24 | 4.44 | 245.62 | -44.37 | 77.93 | 0.7153 | -1030.5 | -312.2 | |
| 2.03 | -1.00 | 1.45 | -1.00 | 4.65 | 244.93 | -45.07 | 77.86 | 0.7241 | -553.7 | 999999 | |
| 2.29 | -1.00 | 1.64 | -1.00 | 4.23 | 244.83 | -45.16 | 78.46 | 0.7241 | -346.8 | 999999 | |
| 0.26 | -1.00 | 0.19 | -1.00 | 4.67 | 244.67 | -45.33 | 77.91 | 0.7272 | -618.0 | 999999 | |
| 1.94 | -1.00 | 1.39 | -1.00 | 3.66 | 244.65 | -45.34 | 79.28 | 0.7248 | -503.5 | 999999 | |
| 2.12 | -1.00 | 1.53 | -1.00 | 5.05 | 244.37 | -45.62 | 77.48 | 0.7316 | -551.0 | 999999 | |
| 0.97 | -1.00 | 0.71 | -1.00 | 5.19 | 244.14 | -45.85 | 77.37 | 0.7346 | -516.3 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.45 | 5.56 | 243.67 | -46.32 | 77.02 | 0.7410 | -354.0 | -343.4 | |
| 0.00 | 0.53 | 0.00 | 0.39 | 4.83 | 243.30 | -46.69 | 78.10 | 0.7433 | 469.0 | 422.5 | |
| 0.44 | 1.41 | 0.33 | 1.05 | 4.81 | 242.77 | -47.22 | 78.28 | 0.7493 | 616.6 | 533.8 | |
| 0.00 | 0.97 | 0.00 | 0.73 | 5.41 | 242.49 | -47.51 | 77.57 | 0.7540 | 487.0 | 457.5 | |
| 0.00 | 1.06 | 0.00 | 0.80 | 5.11 | 242.43 | -47.56 | 77.98 | 0.7539 | 693.0 | 561.9 | |
| 0.00 | 0.97 | 0.00 | 0.73 | 2.90 | 242.24 | -47.76 | 80.92 | 0.7510 | 164.0 | 134.9 | |
| 0.00 | 3.09 | 0.00 | 2.32 | 2.11 | 241.82 | -48.17 | 82.05 | 0.7542 | 763.0 | 637.9 | |
| 0.00 | 1.32 | 0.00 | 1.01 | 4.47 | 241.58 | -48.41 | 79.03 | 0.7618 | 592.0 | 434.3 | |
| 4.41 | 10.42 | 3.34 | 7.88 | 3.19 | 241.63 | -48.36 | 80.68 | 0.7585 | 774.2 | 657.7 | |
| 0.00 | 3.18 | 0.00 | 2.43 | 4.28 | 241.37 | -48.62 | 79.34 | 0.7637 | 681.0 | 500.8 | |
| 0.00 | 1.50 | 0.00 | 1.14 | 3.00 | 241.37 | -48.62 | 80.99 | 0.7610 | 662.0 | 582.6 | |
| 0.00 | 1.15 | 0.00 | 0.87 | 2.81 | 241.38 | -48.61 | 81.23 | 0.7605 | 524.0 | 497.3 | |
| 0.00 | 0.71 | 0.00 | 0.54 | 2.54 | 241.39 | -48.60 | 81.58 | 0.7598 | 621.0 | 520.1 | |
| 0.00 | 1.15 | 0.00 | 0.88 | 3.75 | 241.14 | -48.86 | 80.08 | 0.7651 | 549.0 | 499.8 | |
| 0.00 | 0.88 | 0.00 | 0.68 | 3.32 | 241.12 | -48.87 | 80.64 | 0.7644 | 385.0 | 305.8 | |
| 0.00 | 0.53 | 0.00 | 0.41 | 4.61 | 240.97 | -49.02 | 79.02 | 0.7688 | 493.0 | 447.2 | |
| 0.00 | 0.97 | 0.00 | 0.76 | 5.22 | 240.26 | -49.73 | 78.43 | 0.7779 | 615.0 | 496.8 | |
| 0.00 | 0.71 | 0.00 | 0.56 | 3.61 | 239.41 | -50.58 | 80.67 | 0.7836 | 619.0 | 598.2 | |
| 0.00 | 1.06 | 0.00 | 0.85 | 5.34 | 239.06 | -50.94 | 78.59 | 0.7909 | 628.0 | 534.8 | |
| 0.00 | 0.35 | 0.00 | 0.28 | 2.88 | 238.99 | -51.01 | 81.68 | 0.7868 | 365.0 | 396.2 | |
| 0.00 | 0.71 | 0.00 | 0.58 | 5.72 | 238.23 | -51.76 | 78.33 | 0.8002 | 578.0 | 512.9 | |
| 15.45 | 60.11 | 12.65 | 49.13 | 4.17 | 238.11 | -51.88 | 80.27 | 0.7984 | 799.7 | 368.9 | |
| 0.00 | 0.88 | 0.00 | 0.73 | 5.46 | 237.62 | -52.37 | 78.80 | 0.8059 | 376.0 | 305.4 | |
| 0.00 | 0.97 | 0.00 | 0.81 | 5.24 | 237.30 | -52.69 | 79.14 | 0.8087 | 371.0 | 318.2 | |
| 3.44 | 5.65 | 2.88 | 4.72 | 4.60 | 237.32 | -52.67 | 79.92 | 0.8072 | 529.3 | 343.3 | |
| 0.00 | 3.00 | 0.00 | 2.52 | 4.98 | 237.18 | -52.81 | 79.49 | 0.8094 | 308.0 | 289.2 | |
| 0.00 | 1.06 | 0.00 | 0.91 | 6.40 | 236.64 | -53.35 | 77.91 | 0.8176 | 314.0 | 258.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
