SDO HMI 2014-04-12 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.93 | 0.00 | 5.53 | -20.36 | 323.75 | 34.31 | 242.10 | 0.5982 | -16.0 | 89.9 | |
|
previous
or next observation for the same group /

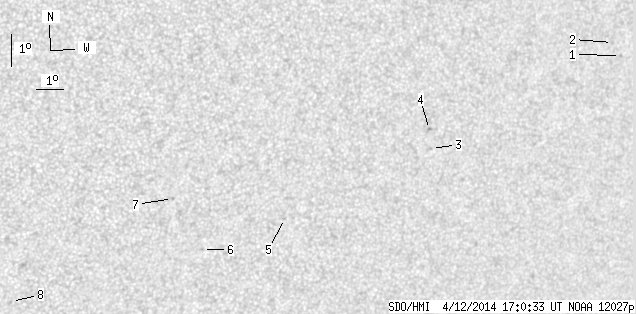

back to the solar disc SDO HMI 2014-04-12 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.78 | -16.84 | 332.36 | 42.92 | 251.56 | 0.6893 | 562.0 | 529.8 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -16.46 | 331.91 | 42.47 | 252.00 | 0.6832 | 553.0 | 474.4 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -20.15 | 325.48 | 36.04 | 244.29 | 0.6153 | 604.0 | 504.2 | |
| 0.00 | 1.77 | 0.00 | 1.10 | -19.57 | 325.25 | 35.81 | 245.10 | 0.6100 | 908.0 | 737.0 | |
| 0.00 | 1.41 | 0.00 | 0.85 | -22.61 | 320.42 | 30.97 | 237.52 | 0.5654 | -625.0 | -453.4 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -23.72 | 317.60 | 28.16 | 233.59 | 0.5389 | -752.0 | -633.3 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -22.17 | 316.16 | 26.71 | 234.97 | 0.5104 | -722.0 | -575.5 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -25.64 | 311.03 | 21.59 | 223.82 | 0.4811 | -656.0 | -545.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
