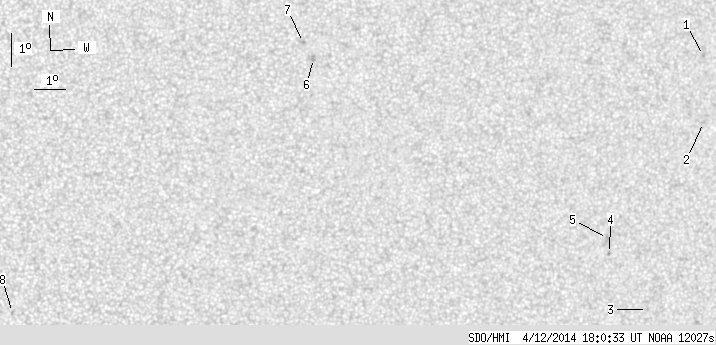

SDO HMI 2014-04-12 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.09 | 0.00 | 6.36 | -16.60 | 303.60 | 14.71 | 228.84 | 0.3253 | 159.9 | 11.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-12 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.43 | -12.77 | 311.07 | 22.18 | 250.74 | 0.3916 | 813.0 | 628.3 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -14.80 | 311.27 | 22.38 | 246.01 | 0.4046 | 679.0 | 464.0 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -20.60 | 310.10 | 21.21 | 232.29 | 0.4298 | 654.0 | 512.7 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -18.91 | 308.58 | 19.69 | 233.90 | 0.3961 | 813.0 | 637.0 | |
| 0.00 | 2.03 | 0.00 | 1.09 | -18.45 | 308.45 | 19.57 | 234.75 | 0.3907 | 993.0 | 654.5 | |
| 0.00 | 2.65 | 0.00 | 1.34 | -13.19 | 298.56 | 9.67 | 231.54 | 0.2099 | -888.0 | -845.9 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -12.71 | 298.23 | 9.34 | 232.50 | 0.2005 | -912.0 | -689.0 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -21.04 | 289.24 | 0.35 | 181.23 | 0.2641 | -873.0 | -622.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
