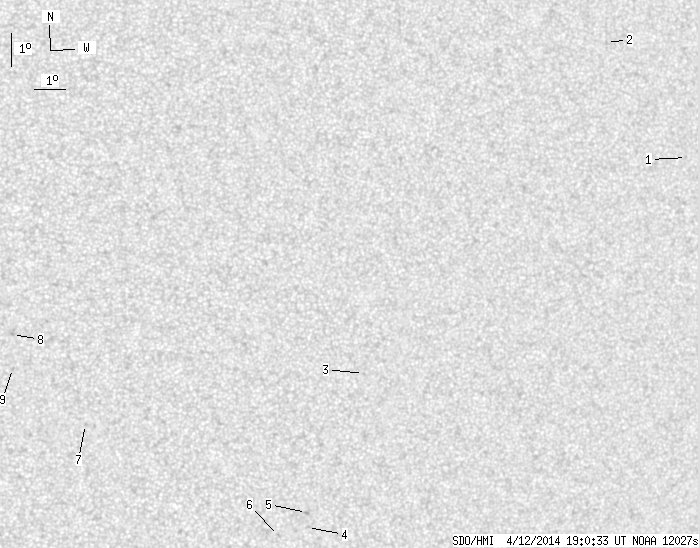

SDO HMI 2014-04-12 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.21 | 0.00 | 6.00 | -14.52 | 307.19 | 18.85 | 240.62 | 0.3627 | 213.4 | 184.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-12 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.26 | -7.14 | 320.37 | 32.03 | 265.80 | 0.5297 | 663.0 | 572.2 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -3.83 | 317.37 | 29.04 | 272.57 | 0.4868 | 631.0 | 533.3 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -14.13 | 309.91 | 21.57 | 246.95 | 0.3892 | 601.0 | 451.5 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -18.89 | 308.56 | 20.23 | 234.61 | 0.4030 | 778.0 | 587.3 | |
| 0.00 | 1.59 | 0.00 | 0.86 | -18.43 | 308.47 | 20.14 | 235.49 | 0.3980 | 986.0 | 820.6 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -19.17 | 307.62 | 19.28 | 232.82 | 0.3931 | 702.0 | 596.9 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -15.93 | 301.00 | 12.66 | 229.78 | 0.2772 | -678.0 | -544.2 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -13.24 | 298.54 | 10.21 | 232.79 | 0.2176 | -941.0 | -850.4 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -14.27 | 298.59 | 10.25 | 229.21 | 0.2288 | -821.0 | -670.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
