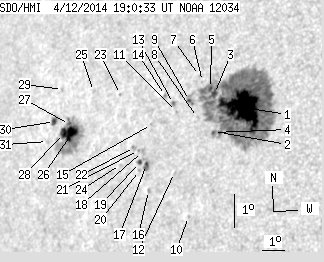

SDO HMI 2014-04-12 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.28 | 509.88 | 75.34 | 359.81 | 4.32 | 244.05 | -44.28 | 78.02 | 0.7132 | -337.0 | -153.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-12 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.64 | 396.03 | 51.90 | 272.18 | 4.38 | 245.68 | -42.65 | 77.47 | 0.6944 | -1005.6 | -326.2 | |
| 0.97 | -1.00 | 0.67 | -1.00 | 3.68 | 244.78 | -43.56 | 78.73 | 0.7035 | -496.2 | 999999 | |
| 3.09 | -1.00 | 2.17 | -1.00 | 4.89 | 244.48 | -43.86 | 77.15 | 0.7104 | -562.8 | 999999 | |
| 0.53 | -1.00 | 0.37 | -1.00 | 3.70 | 244.52 | -43.81 | 78.78 | 0.7066 | 384.8 | 999999 | |
| 1.68 | -1.00 | 1.18 | -1.00 | 5.06 | 244.30 | -44.04 | 76.98 | 0.7130 | -494.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.69 | 5.30 | 243.94 | -44.40 | 76.76 | 0.7180 | -264.0 | -266.0 | |
| 0.00 | 0.88 | 0.00 | 0.63 | 5.49 | 243.80 | -44.54 | 76.55 | 0.7202 | -475.0 | -363.2 | |
| 0.00 | 1.24 | 0.00 | 0.87 | 4.21 | 243.82 | -44.52 | 78.29 | 0.7165 | 264.0 | 235.3 | |
| 0.88 | 7.06 | 0.63 | 5.04 | 4.76 | 243.43 | -44.90 | 77.66 | 0.7224 | 737.0 | 491.9 | |
| 0.00 | 0.97 | 0.00 | 0.68 | 1.22 | 243.57 | -44.77 | 82.48 | 0.7125 | 560.0 | 458.8 | |
| 0.00 | 0.88 | 0.00 | 0.64 | 4.46 | 242.90 | -45.44 | 78.22 | 0.7279 | -439.0 | -383.5 | |
| 0.00 | 1.06 | 0.00 | 0.76 | 2.60 | 242.93 | -45.41 | 80.73 | 0.7231 | -345.0 | -190.9 | |
| 0.53 | 2.21 | 0.38 | 1.59 | 4.72 | 242.75 | -45.59 | 77.92 | 0.7303 | 523.5 | 380.1 | |
| 0.00 | 1.41 | 0.00 | 1.03 | 4.99 | 242.38 | -45.96 | 77.67 | 0.7353 | 546.0 | 566.9 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 4.14 | 241.83 | -46.50 | 78.95 | 0.7395 | 535.0 | 502.9 | |
| 0.00 | 1.77 | 0.00 | 1.28 | 2.14 | 241.82 | -46.52 | 81.63 | 0.7352 | 775.0 | 661.5 | |
| 1.15 | 4.24 | 0.84 | 3.10 | 2.94 | 241.69 | -46.64 | 80.59 | 0.7384 | 895.2 | 792.4 | |
| 0.00 | 3.09 | 0.00 | 2.27 | 3.35 | 241.49 | -46.84 | 80.10 | 0.7416 | 766.0 | 587.9 | |
| 1.24 | 3.88 | 0.91 | 2.86 | 3.02 | 241.38 | -46.96 | 80.56 | 0.7422 | 650.2 | 628.2 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 2.78 | 241.39 | -46.94 | 80.88 | 0.7415 | 547.0 | 466.7 | |
| 0.00 | 0.71 | 0.00 | 0.52 | 3.39 | 241.31 | -47.02 | 80.08 | 0.7437 | 754.0 | 691.6 | |
| 0.00 | 2.74 | 0.00 | 2.03 | 3.50 | 241.13 | -47.21 | 79.99 | 0.7461 | 683.0 | 565.7 | |
| 0.00 | 0.88 | 0.00 | 0.67 | 5.17 | 240.36 | -47.97 | 78.01 | 0.7586 | 362.0 | 421.2 | |
| 0.00 | 0.88 | 0.00 | 0.66 | 3.03 | 240.53 | -47.81 | 80.76 | 0.7519 | 539.0 | 465.0 | |
| 0.00 | 1.32 | 0.00 | 1.03 | 5.36 | 239.10 | -49.23 | 78.11 | 0.7729 | 629.0 | 511.1 | |
| 12.27 | 68.31 | 9.67 | 53.90 | 4.15 | 238.19 | -50.15 | 79.88 | 0.7800 | 966.0 | 349.7 | |
| 1.24 | -26.00 | 0.98 | -26.00 | 4.44 | 238.07 | -50.27 | 79.55 | 0.7819 | 611.1 | 999999 | |
| 4.77 | -26.00 | 3.79 | -26.00 | 4.18 | 237.81 | -50.53 | 79.93 | 0.7842 | 470.9 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.71 | 5.54 | 237.62 | -50.72 | 78.28 | 0.7891 | 426.0 | 362.6 | |
| 2.29 | 4.85 | 1.85 | 3.90 | 4.59 | 237.34 | -51.00 | 79.54 | 0.7900 | 608.6 | 426.2 | |
| 0.00 | 1.68 | 0.00 | 1.35 | 4.00 | 237.06 | -51.28 | 80.34 | 0.7918 | 424.0 | 292.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
