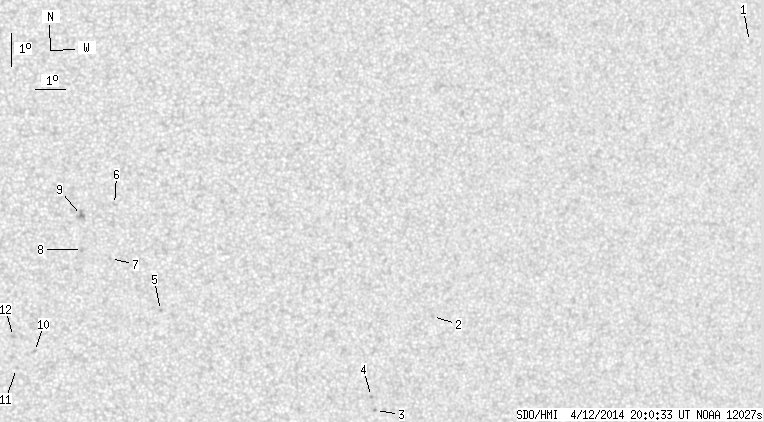

SDO HMI 2014-04-12 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.96 | 0.00 | 10.34 | -15.13 | 301.49 | 13.71 | 232.07 | 0.2884 | -300.6 | -346.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-12 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.41 | -7.15 | 320.28 | 32.50 | 265.80 | 0.5366 | 49.0 | 76.0 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -15.93 | 310.19 | 22.41 | 243.45 | 0.4115 | 773.0 | 540.1 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -18.87 | 308.62 | 20.84 | 235.37 | 0.4108 | 854.0 | 723.7 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -18.45 | 308.43 | 20.65 | 236.06 | 0.4049 | 917.0 | 795.5 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -16.01 | 301.25 | 13.47 | 231.23 | 0.2884 | -707.0 | -600.1 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -12.82 | 299.61 | 11.82 | 238.13 | 0.2363 | -729.0 | -512.2 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -14.46 | 299.56 | 11.78 | 232.35 | 0.2508 | -764.0 | -565.7 | |
| 0.00 | 1.68 | 0.00 | 0.85 | -14.20 | 298.66 | 10.88 | 231.08 | 0.2363 | -606.0 | -567.5 | |
| 0.00 | 4.85 | 0.00 | 2.47 | -13.17 | 298.59 | 10.80 | 234.54 | 0.2250 | -1129.0 | -810.9 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -17.33 | 297.30 | 9.51 | 218.10 | 0.2568 | -969.0 | -629.8 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -17.86 | 296.75 | 8.96 | 215.22 | 0.2583 | -516.0 | -401.2 | |
| 0.00 | 2.12 | 0.00 | 1.08 | -16.88 | 296.61 | 8.82 | 217.20 | 0.2438 | -780.0 | -613.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
