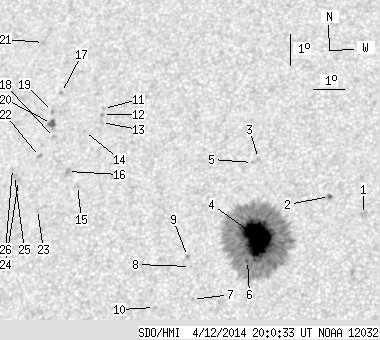

SDO HMI 2014-04-12 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.91 | 426.67 | 35.64 | 227.60 | 11.37 | 274.45 | -13.33 | 37.55 | 0.3715 | -683.6 | -358.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-12 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.33 | 0.00 | 2.28 | 11.79 | 278.20 | -9.58 | 28.44 | 0.3437 | -597.0 | -505.7 | |
| 0.79 | 1.94 | 0.42 | 1.03 | 12.38 | 277.12 | -10.67 | 30.22 | 0.3608 | 957.2 | 792.0 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 13.64 | 274.82 | -12.97 | 33.42 | 0.3975 | -773.0 | -622.1 | |
| 62.23 | 385.55 | 33.07 | 204.88 | 11.14 | 274.91 | -12.87 | 37.11 | 0.3639 | -1520.4 | -443.5 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 13.52 | 274.63 | -13.15 | 33.97 | 0.3975 | -730.0 | -566.6 | |
| 1.15 | -4.00 | 0.61 | -4.00 | 10.43 | 274.63 | -13.16 | 38.96 | 0.3576 | -925.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 9.25 | 272.95 | -14.84 | 44.58 | 0.3616 | 726.0 | 535.0 | |
| 0.00 | 0.62 | 0.00 | 0.33 | 10.29 | 272.84 | -14.94 | 42.83 | 0.3749 | -678.0 | -460.4 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 10.60 | 272.73 | -15.06 | 42.46 | 0.3798 | -932.0 | -762.6 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 9.04 | 271.76 | -16.03 | 47.22 | 0.3731 | -756.0 | -576.0 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 15.39 | 269.70 | -18.09 | 40.00 | 0.4676 | 771.0 | 595.5 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 15.20 | 269.68 | -18.10 | 40.30 | 0.4655 | 995.0 | 837.9 | |
| 0.00 | 1.50 | 0.00 | 0.84 | 14.94 | 269.67 | -18.11 | 40.69 | 0.4627 | 747.0 | 482.8 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 14.67 | 269.14 | -18.65 | 41.90 | 0.4650 | 783.0 | 636.9 | |
| 0.00 | 1.68 | 0.00 | 0.93 | 12.96 | 269.05 | -18.73 | 44.69 | 0.4469 | 783.0 | 675.5 | |
| 0.00 | 2.91 | 0.00 | 1.62 | 13.41 | 268.69 | -19.10 | 44.51 | 0.4558 | 1009.0 | 661.0 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 15.96 | 268.26 | -19.53 | 41.35 | 0.4884 | 810.0 | 684.1 | |
| 0.00 | 1.50 | 0.00 | 0.84 | 14.52 | 268.16 | -19.62 | 43.58 | 0.4734 | 777.0 | 702.4 | |
| 0.00 | 1.32 | 0.00 | 0.75 | 15.36 | 268.02 | -19.76 | 42.55 | 0.4842 | 761.0 | 657.5 | |
| 2.74 | 5.91 | 1.54 | 3.33 | 14.97 | 268.02 | -19.76 | 43.11 | 0.4799 | 898.2 | 653.1 | |
| 0.00 | 1.41 | 0.00 | 0.81 | 17.61 | 267.48 | -20.31 | 40.20 | 0.5145 | 710.0 | 587.3 | |
| 0.00 | 2.29 | 0.00 | 1.29 | 13.93 | 267.72 | -20.06 | 45.11 | 0.4718 | 991.0 | 734.4 | |
| 0.00 | 1.85 | 0.00 | 1.03 | 12.24 | 267.80 | -19.98 | 47.71 | 0.4534 | 668.0 | 544.6 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 13.19 | 267.10 | -20.69 | 47.15 | 0.4711 | 717.0 | 608.2 | |
| 0.00 | 2.29 | 0.00 | 1.29 | 13.35 | 266.95 | -20.83 | 47.09 | 0.4744 | 651.0 | 539.8 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 13.58 | 266.86 | -20.92 | 46.85 | 0.4777 | 585.0 | 511.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
