SDO HMI 2014-04-12 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.26 | 0.00 | 7.95 | -19.68 | 324.95 | 37.72 | 244.68 | 0.6370 | 58.4 | 74.9 | |
|
previous
or next observation for the same group /

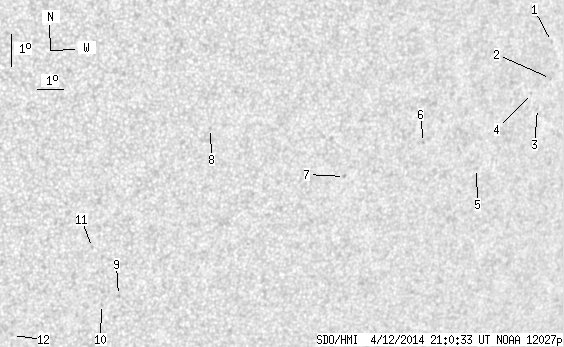

back to the solar disc SDO HMI 2014-04-12 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.63 | -14.84 | 332.80 | 45.57 | 254.89 | 0.7173 | 448.0 | 450.4 | |
| 0.00 | 0.79 | 0.00 | 0.57 | -15.96 | 333.07 | 45.84 | 253.38 | 0.7221 | 460.0 | 430.7 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -16.91 | 332.77 | 45.54 | 252.02 | 0.7202 | 420.0 | 406.3 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -16.47 | 332.37 | 45.14 | 252.55 | 0.7148 | 585.0 | 433.1 | |
| 0.00 | 1.41 | 0.00 | 0.98 | -18.91 | 330.69 | 43.46 | 248.75 | 0.7005 | 512.0 | 377.8 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -18.26 | 328.22 | 40.99 | 248.98 | 0.6695 | 685.0 | 579.1 | |
| 0.00 | 1.32 | 0.00 | 0.85 | -19.50 | 325.30 | 38.07 | 246.14 | 0.6379 | 761.0 | 640.0 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -18.31 | 319.79 | 32.56 | 245.60 | 0.5631 | -585.0 | -431.2 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -23.66 | 317.56 | 30.33 | 235.38 | 0.5642 | -654.0 | -576.5 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -23.97 | 316.99 | 29.76 | 234.46 | 0.5596 | -602.0 | -502.7 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -22.20 | 316.23 | 29.00 | 236.77 | 0.5387 | -702.0 | -550.2 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -25.09 | 313.92 | 26.69 | 230.10 | 0.5324 | -627.0 | -522.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
